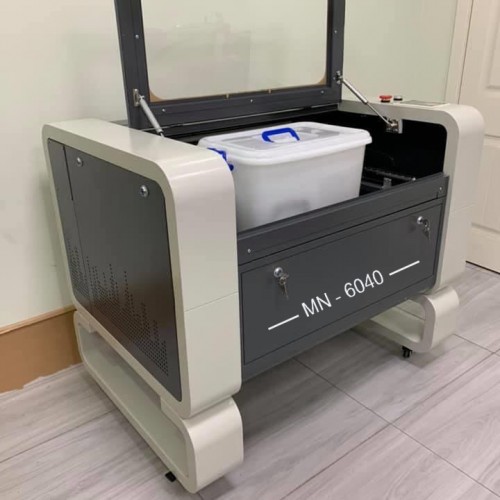

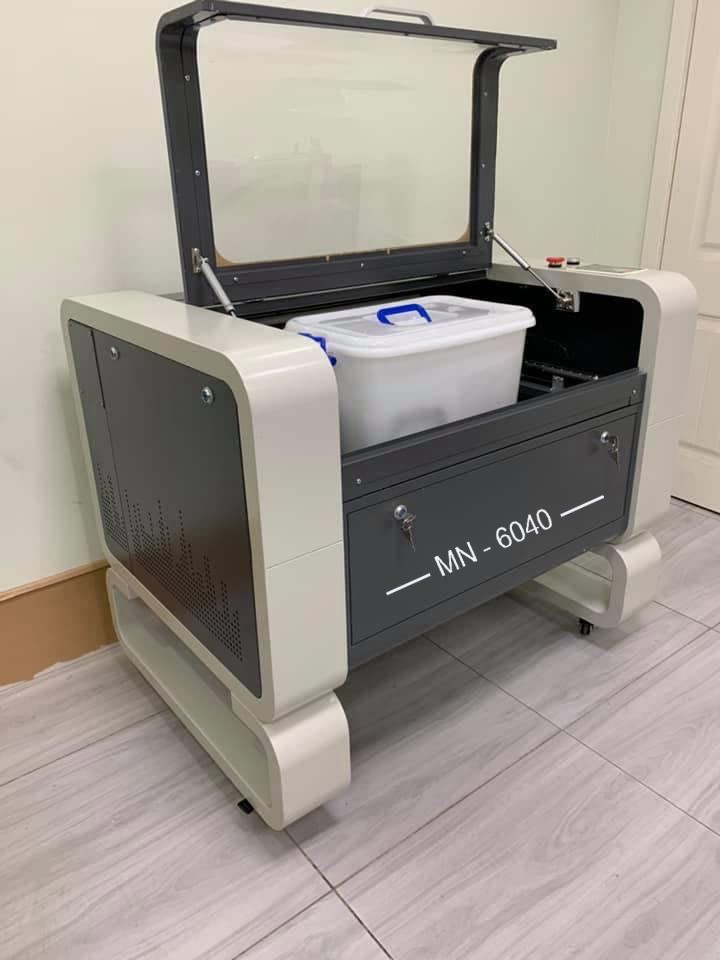

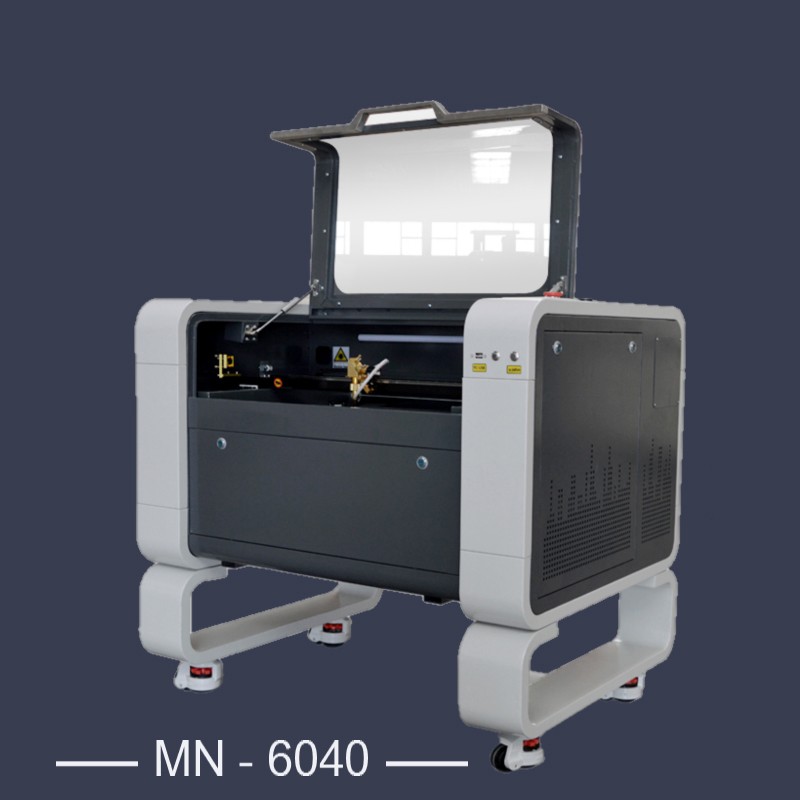

As a laser cutting machine manufacturer voiern CO2 laser engraving machine is the most powerful laser equipment , almost all materials can be processed perfectly.
| Machine size: | 1400*790*980mm |
|---|---|
| Machine color: | Dark grey-white,dark grey-red |
| Working area: | 600*400mm |
| Engraving thickness | 2mm(depends on material) |
| Cutting thickness | 2cm(depends on material) |

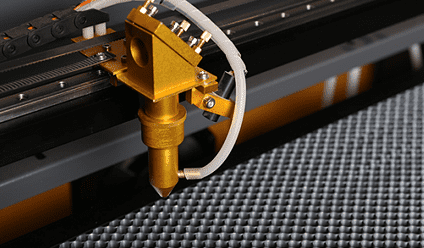

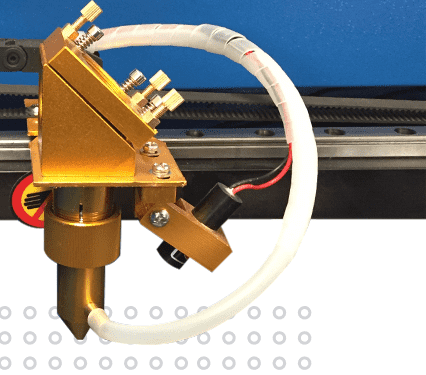

Laser head of small laser engraving machine can be extended up to 6cm. Being very convenient for adjusting the focal length and high precision.

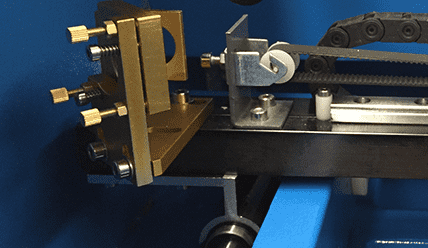

The optical path frame is made of thick aluminum plated plate, anti-oxidation, standardized components. It is very easy to adjust and the stability is stronger.

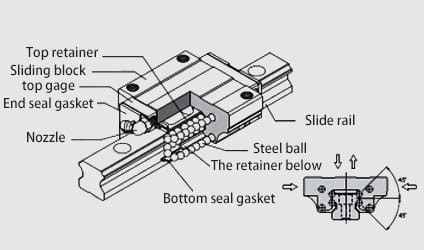

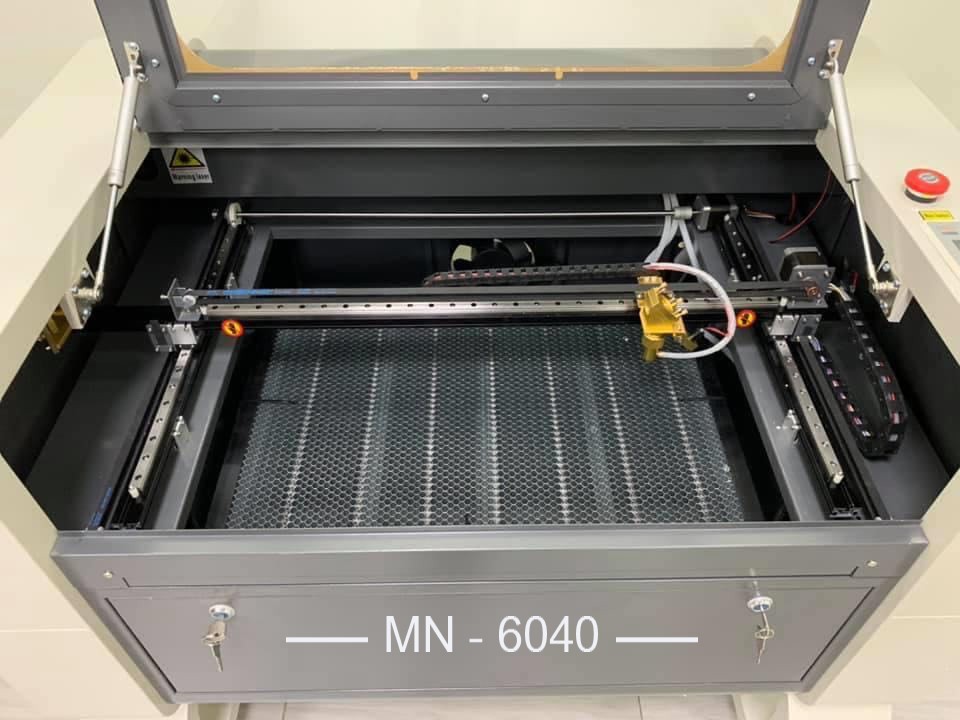

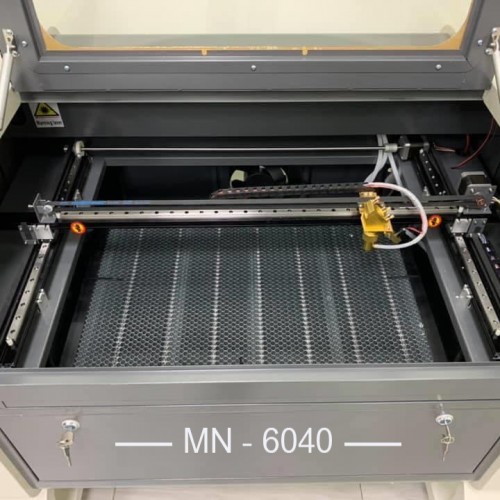

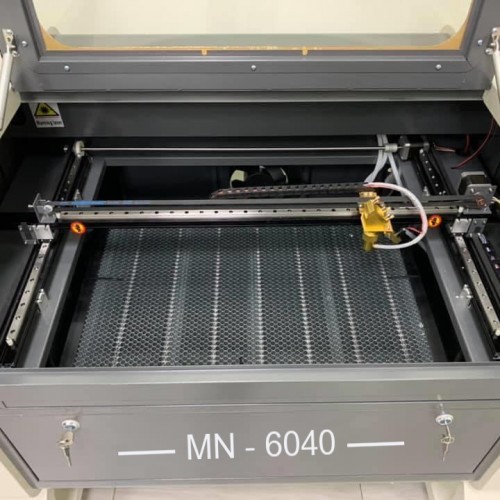

Reinforced bearing slide design of small laser engraving machine, stainless steel guide rail is rustproof and oxidation resistance. Lower drag coefficient, higher precision and smooth operation.

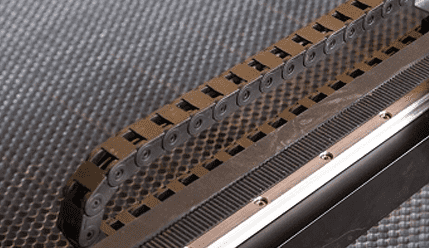

Tank track guide chain of voiern small laser engraving machine protects the air pipe effectively ,this design protects the wiring harness from wear and tear.

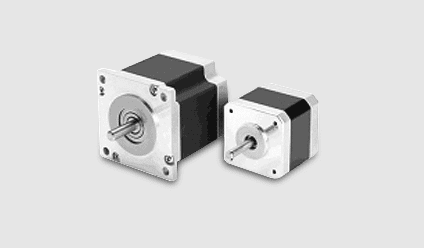

Stable high-speed stepping motor of small laser engraving machine. Speed and stability could also be comparable with the mainframe.

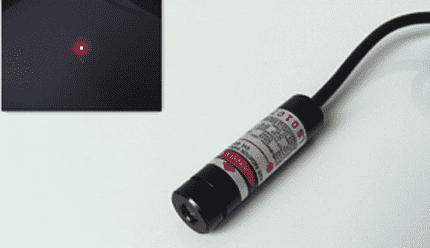

It can accurately posit the working position of the laser beam, small laser engraving machine working is high precision.
It can protect the lens from smoke pollution and ensure light transmittance. Removing excess heat and impurities. So carbonization and charring will be avoided.

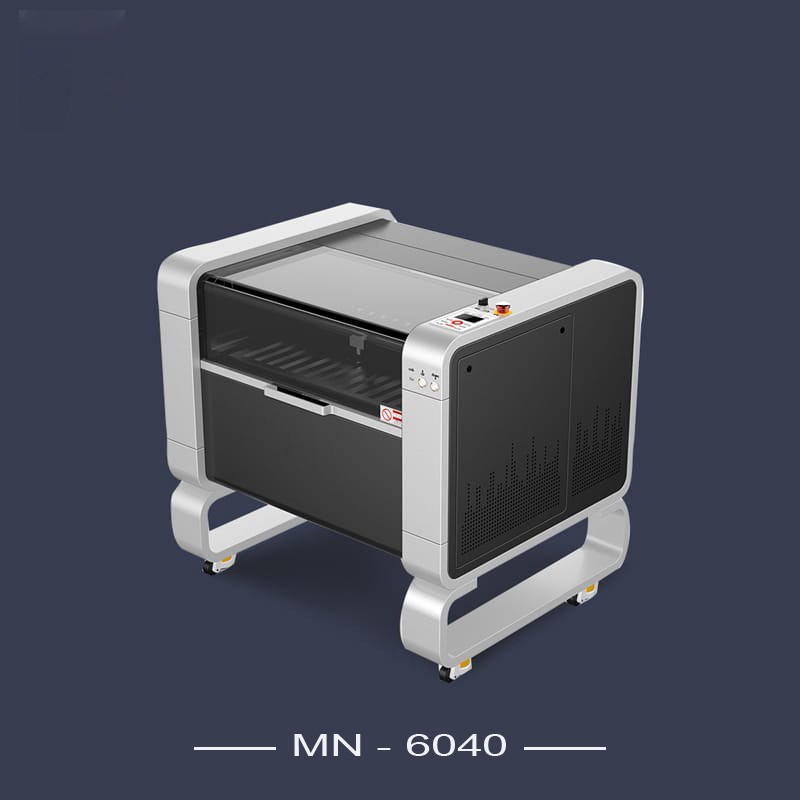

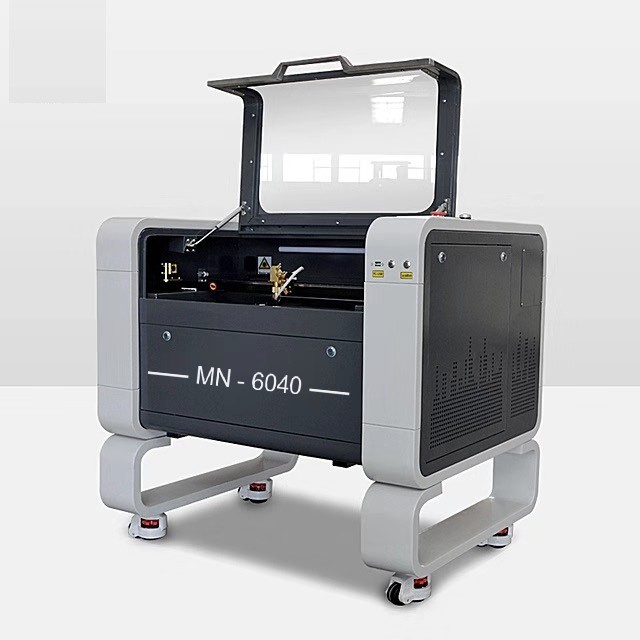

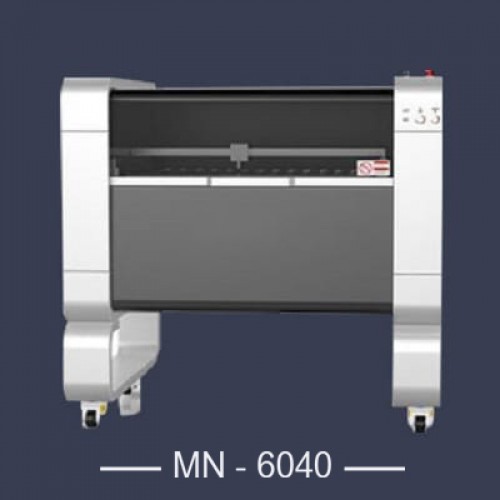

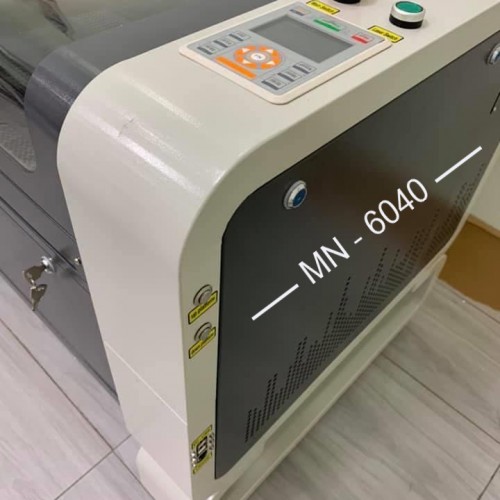

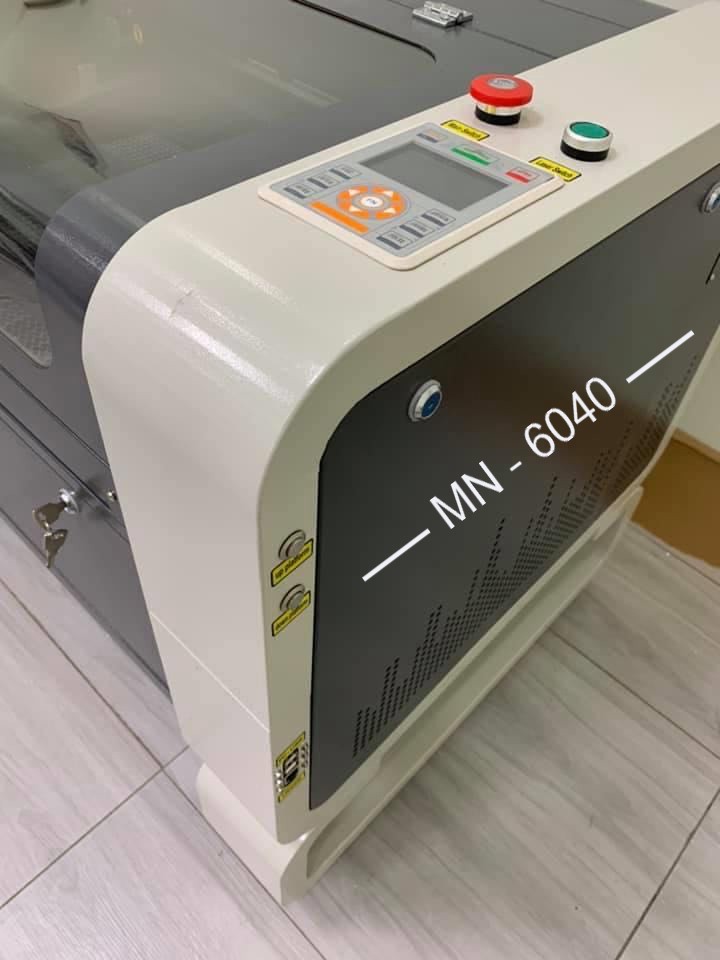

| Specification | MN-6040 50w (laser engraving machine) |
|---|---|
| Machine size | 1400*790*980mm |
| Machine color | Dark grey-white,dark grey-red |
| Working area | 600*400mm |
| Engraving thickness | 2mm(depends on material) |
| Cutting thickness | 2cm(depends on material) |
| Engraving speed | 1-400mm/s |
| Cutting speed | 1-400mm/s |
| Laser power | 40W/50W |
| Laser type | sealed CO2 laser tube |
| Cooling mode | water cooling protection system |
| Water protection | yes |
| Positioning way | red light positioning |
| Locating precision | <=0.01mm |
| Working platform | Honeycomb |
| Lift range | Manual 0-50mm |
| Power supply | AC220V/110V 50HZ |
| Net weight | 35kg |
| Package | Standard plywood case |
| System environment | WindowXP/win7/8/10 |
| Control software | Coreldraw/RuidaV8 |
| Material | Engraving | Cutting |
|---|---|---|
| Acrylic | √ | √ |
| wood | √ | √ |
| bamboo | √ | √ |
| glass | √ | |
| leather | √ | √ |
| paper | √ | √ |
| rubber | √ | √ |
| textile | √ | √ |
| plastic | √ | √ |
| metal | ||
| stone | √ | |
| ceramic | √ |
