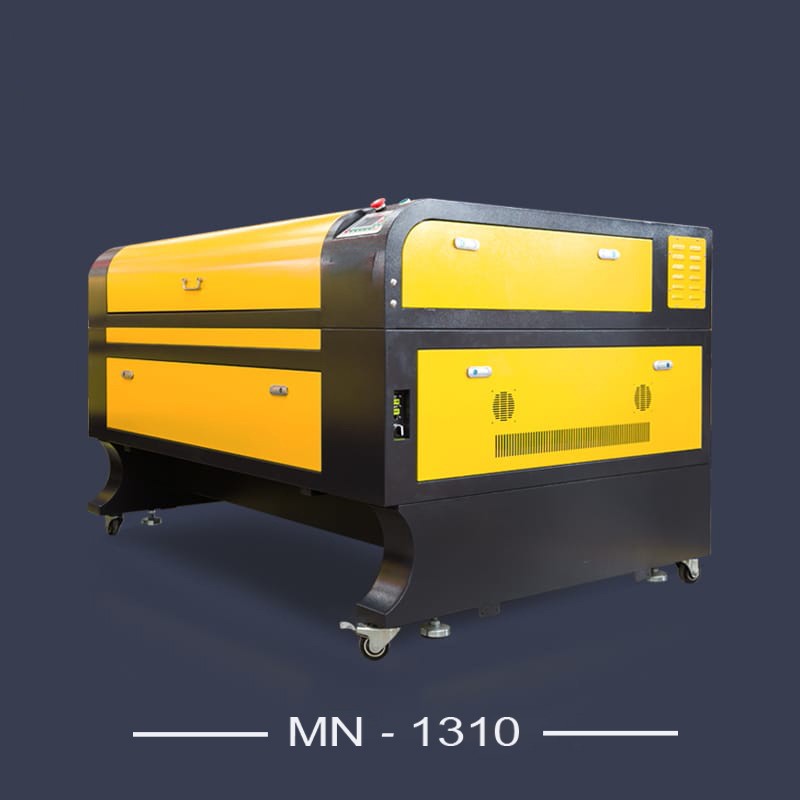

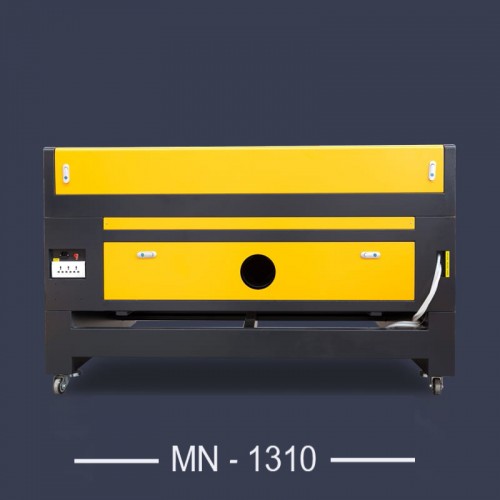

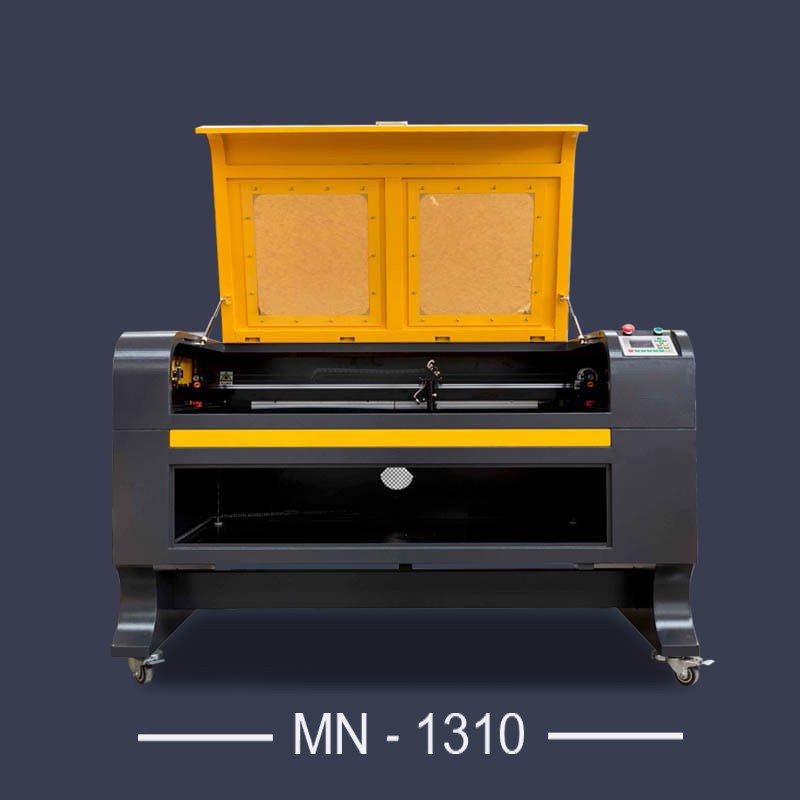

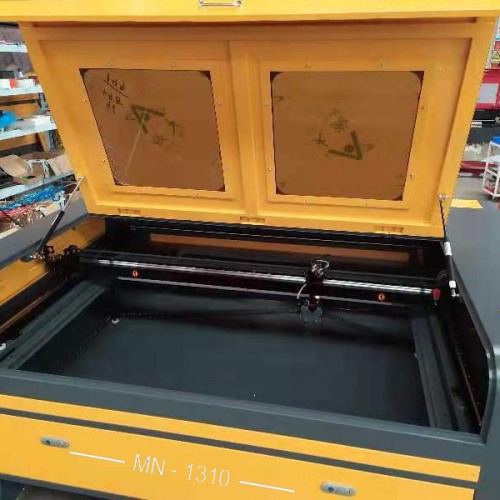

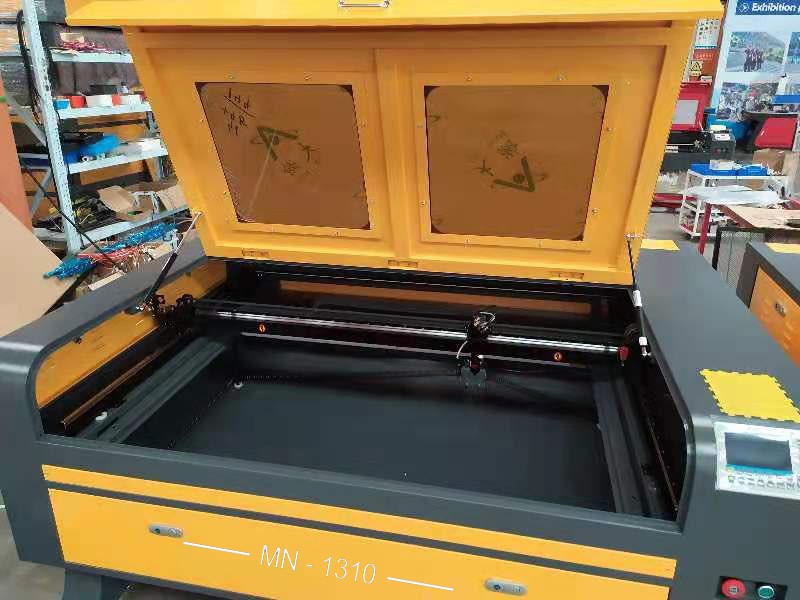

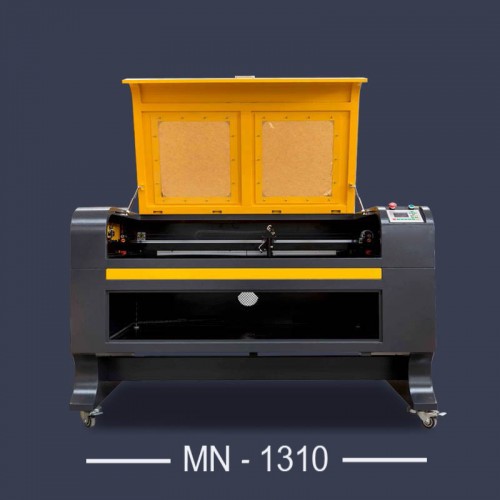

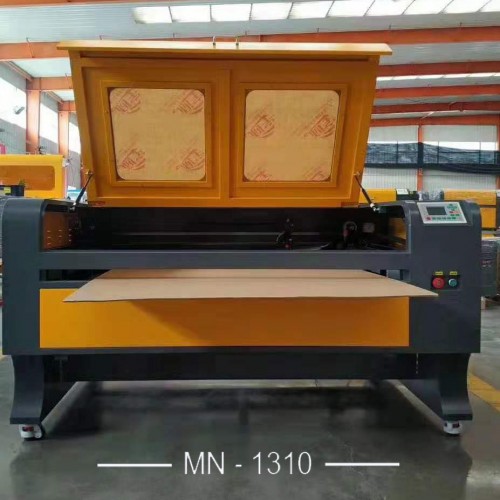

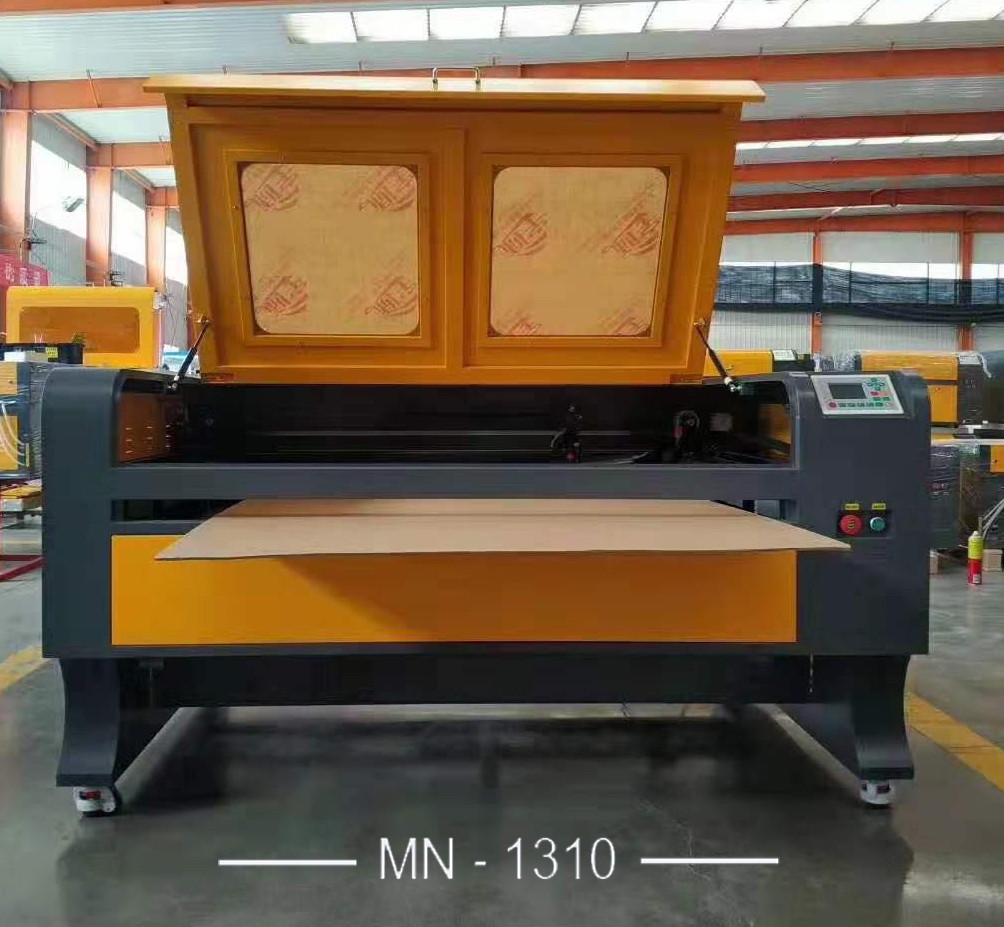

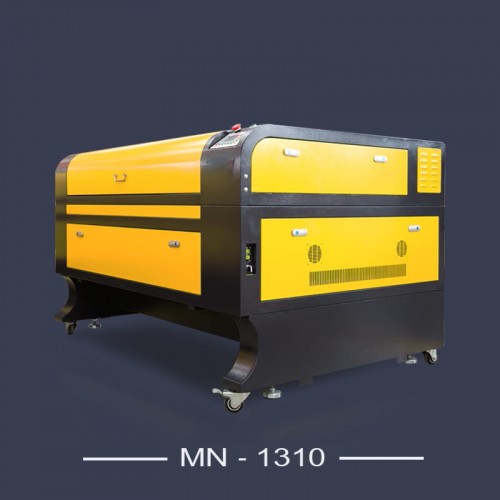

As an industrial level engraving machine 1390 craft laser cutter, laser cutting machine china, more powerful to meet the customer large format, thicker material processing need.
| Machine size: | 1850*1310*1125mm |
|---|---|
| Machine color: | Blue-White, Gray-Yellow |
| Working area: | 1300/1690*900mm |
| Engraving thickness | 2mm(depends on material) |
| Cutting thickness | 2cm(depends on material) |
Voiern universal laser cutter have powerful processing functions, visual operation and easy to learn , can meet almost all customer processing requirements.

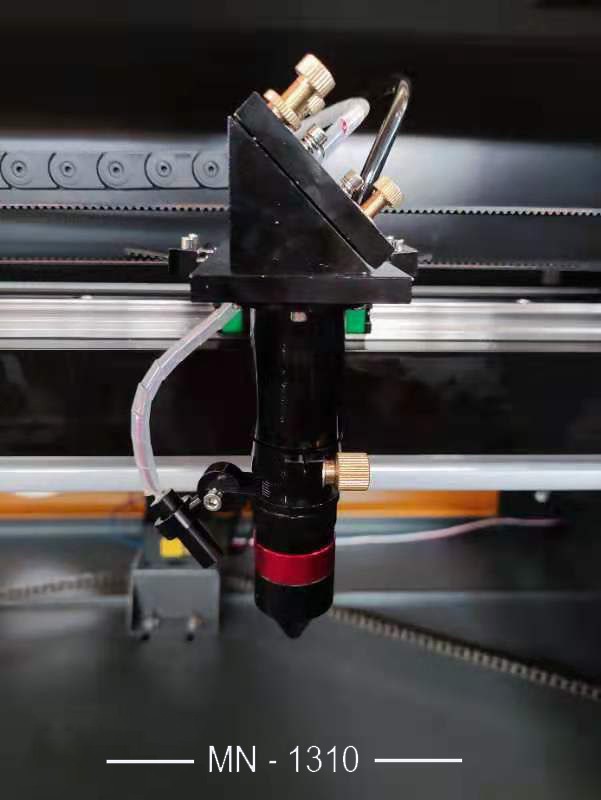

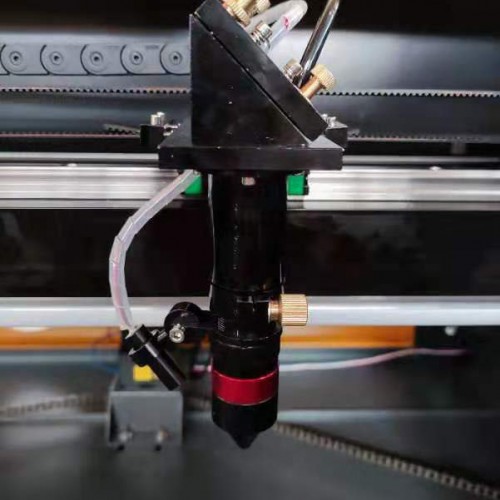

The laser head of industrial laser engraving machine enclosed jet design protects the lens from dust and keeps the lens highly translucent.

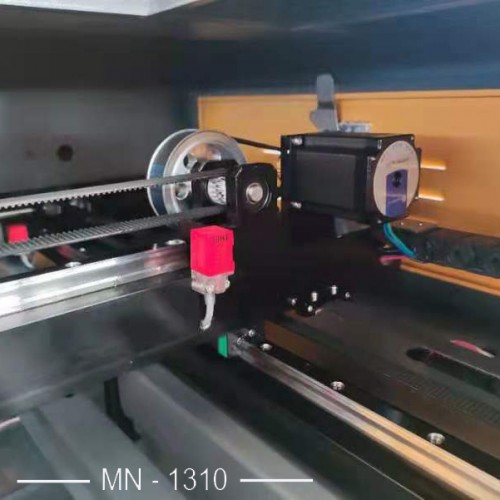

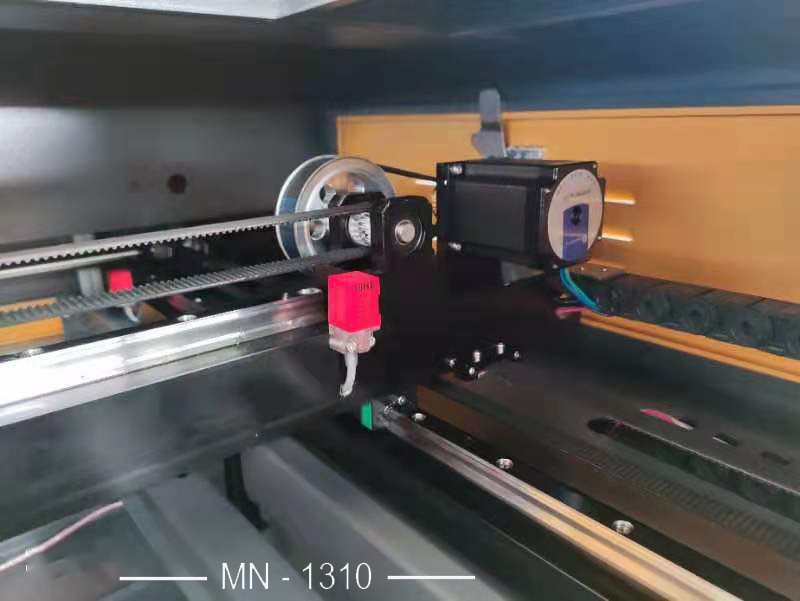

With 57 stepper motors, the engraving speed of universal laser cutter can reach 1000mm/s and the cutting speed can reach 500mm/s.

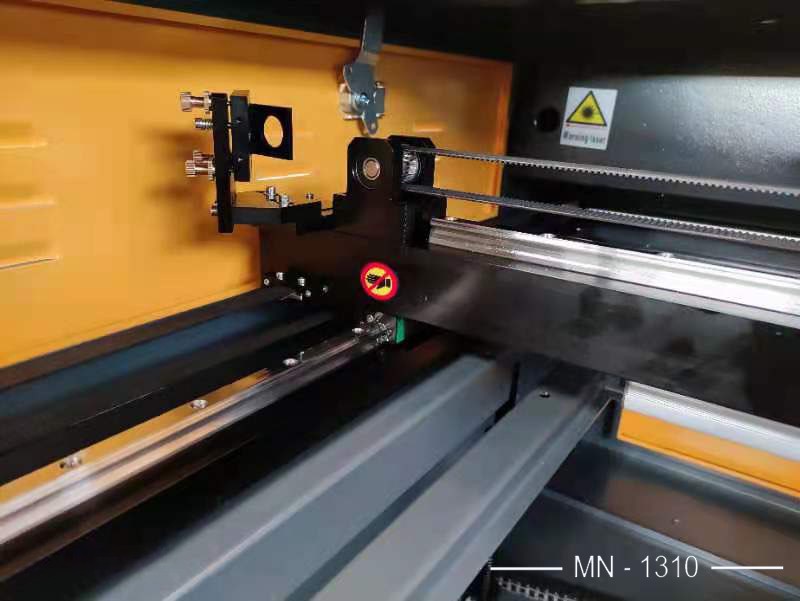

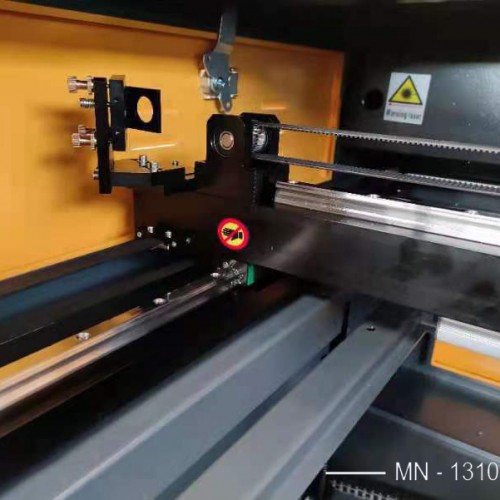

Industrial laser engraving machine have stainless steel guide rail, moving slider bearing design, smaller friction coefficient, higher precision, faster operation with 57 motor.
From 400mm*600mm to 900*1600, universal laser cutter meets the requirements of various sizes of materials for the job format.
Voiern universal laser cutter remove the size limit of the processed material, so that the length of the material is increased to an infinite length.
Industrial laser engraving machine increase the height of the Z axis to meet the height requirements of materials such as large volume and shape.
The famous brand conveyor belt be used in universal laser cutter guarantees a longer service life. the high quality belt has less stretching and deformation so that the operation accuracy is not affected.
It can protect the lens from smoke pollution, ensure light transmission, remove excess heat and impurities, and prevent or reduce the possibility of scorch.
Voiern laser universal laser cutter use High-Quality imported lenses ensure more precise beam focusing, finer beam and longer life.

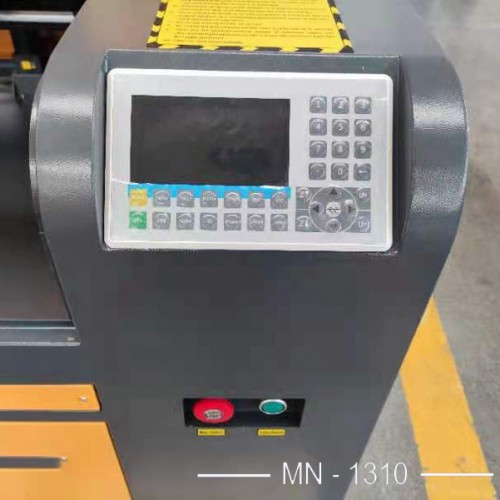

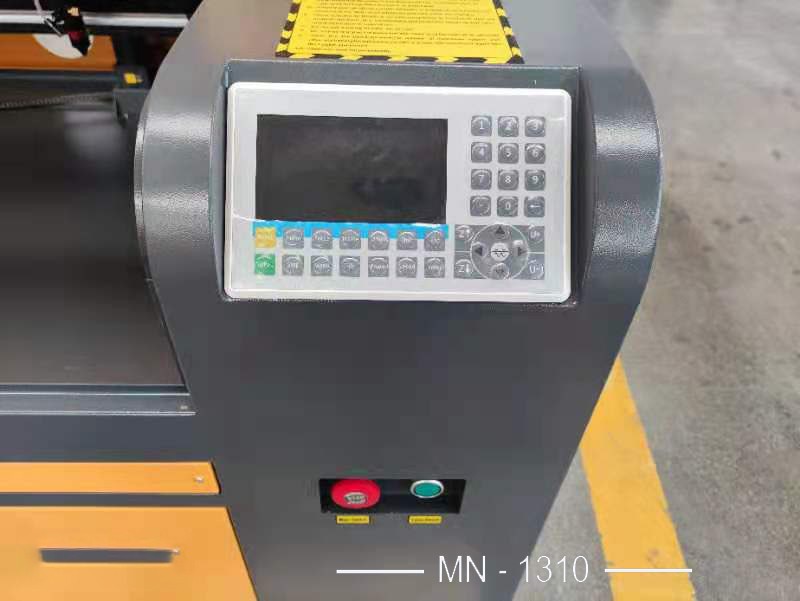

The V8 system sets a variable starting point for work, allowing you to work at any point within the working area.

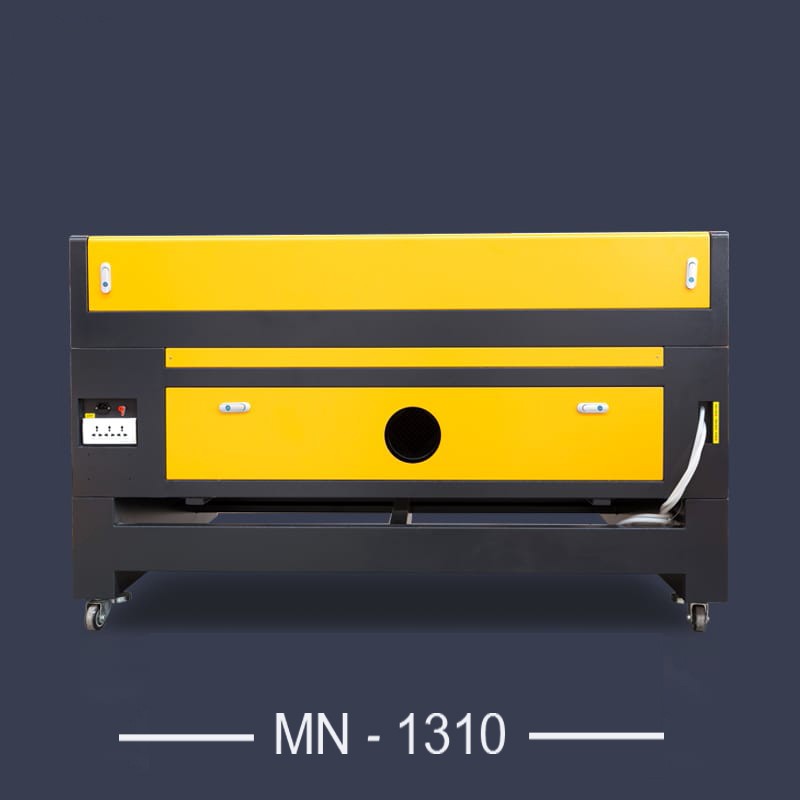

| Specification | MN-1310 (laser cutting machine) |
|---|---|
| Machine size | 1850*1310*1125mm |
| Machine color | Blue-White, Gray-Yellow |
| Working area | 1300/1690*900mm |
| Engraving thickness | 2mm(depends on material) |
| Cutting thickness | 2cm(depends on material) |
| Engraving speed | 1-1000mm/s |
| Cutting speed | 1-500mm/s |
| Laser power | 60w/80w/100w/1350w/150w |
| Laser type | sealed CO2 laser tube |

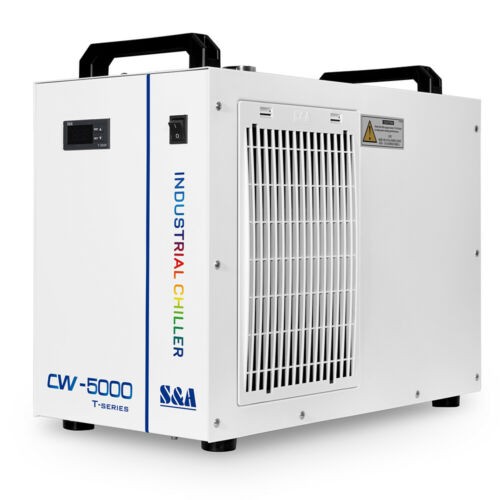

| Cooling mode | water cooling protection system |
| Water protection | yes |
| Positioning way | red light positioning |
| Locating precision | <=0.01mm |
| Working platform | Honeycomb |
| Lift range | 0-350mm |
| Power supply | AC220V/110V 50HZ |
| Net weight | 380kg |

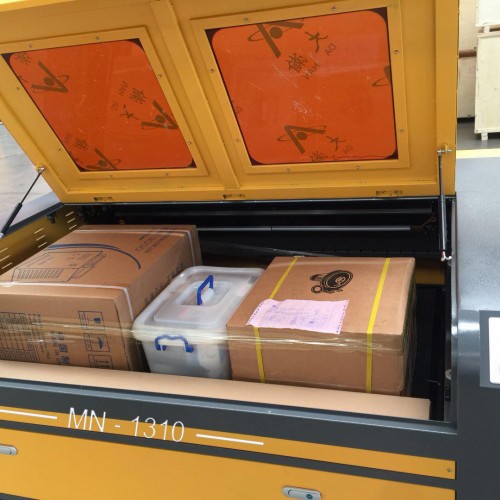

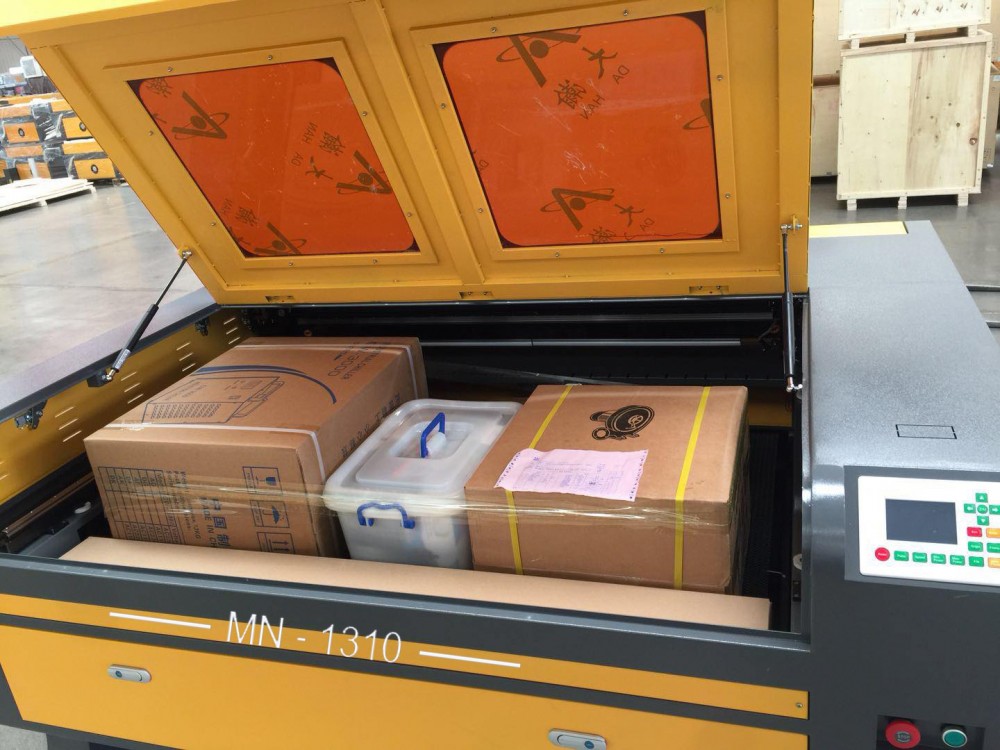

| Package | Standard plywood case |
| System environment | WindowXP/win7/8/10 |
| Control software | Coreldraw/RuidaV8 |
| Material | Engraving | Cutting |
|---|---|---|
| Acrylic | √ | √ |
| wood | √ | √ |
| bamboo | √ | √ |
| glass | √ | |
| leather | √ | √ |
| paper | √ | √ |
| rubber | √ | √ |
| textile | √ | √ |
| plastic | √ | √ |
| metal | ||
| stone | √ | |
| ceramic | √ |
