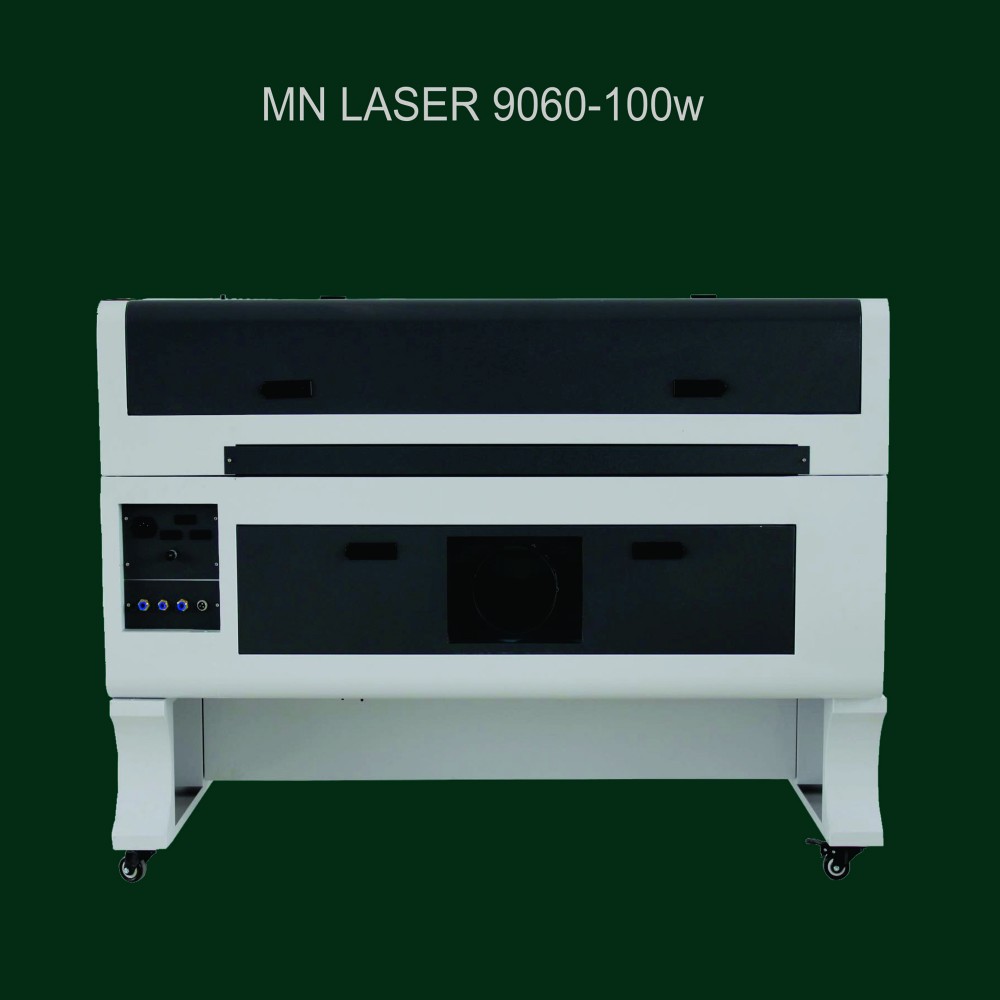

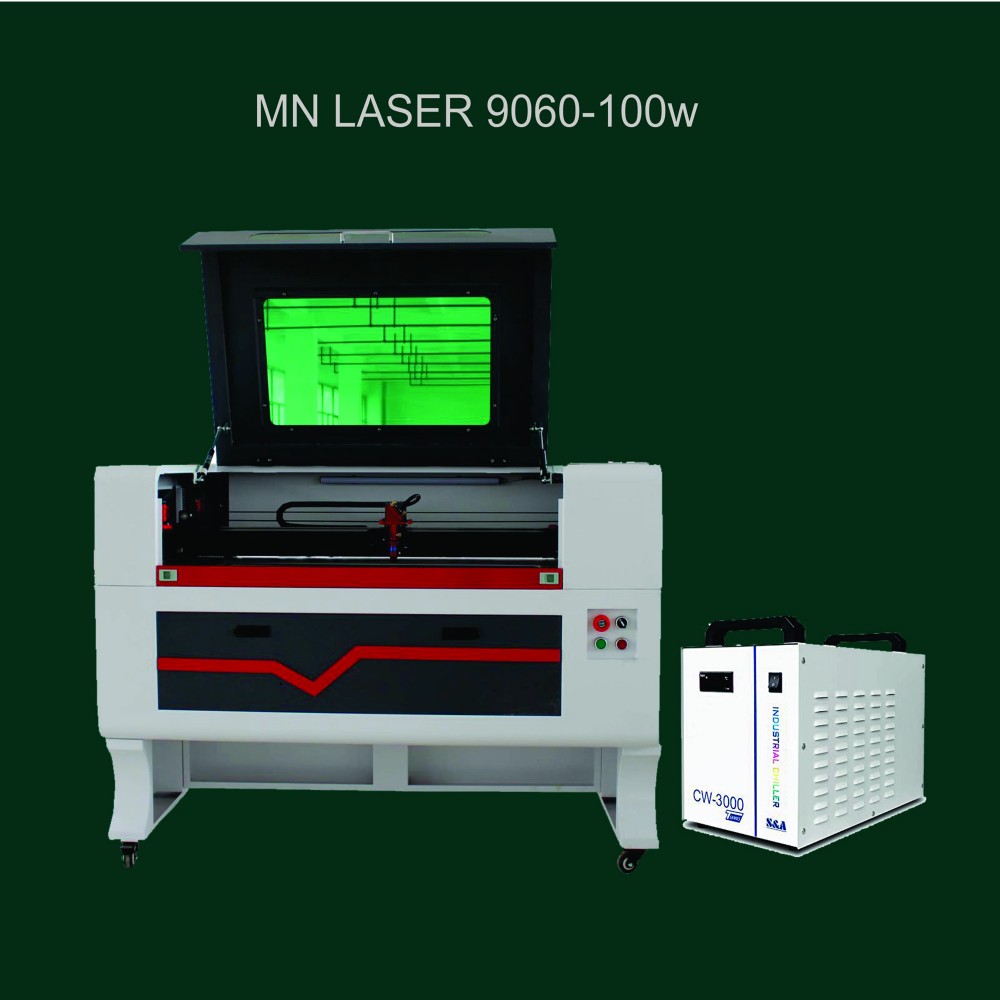

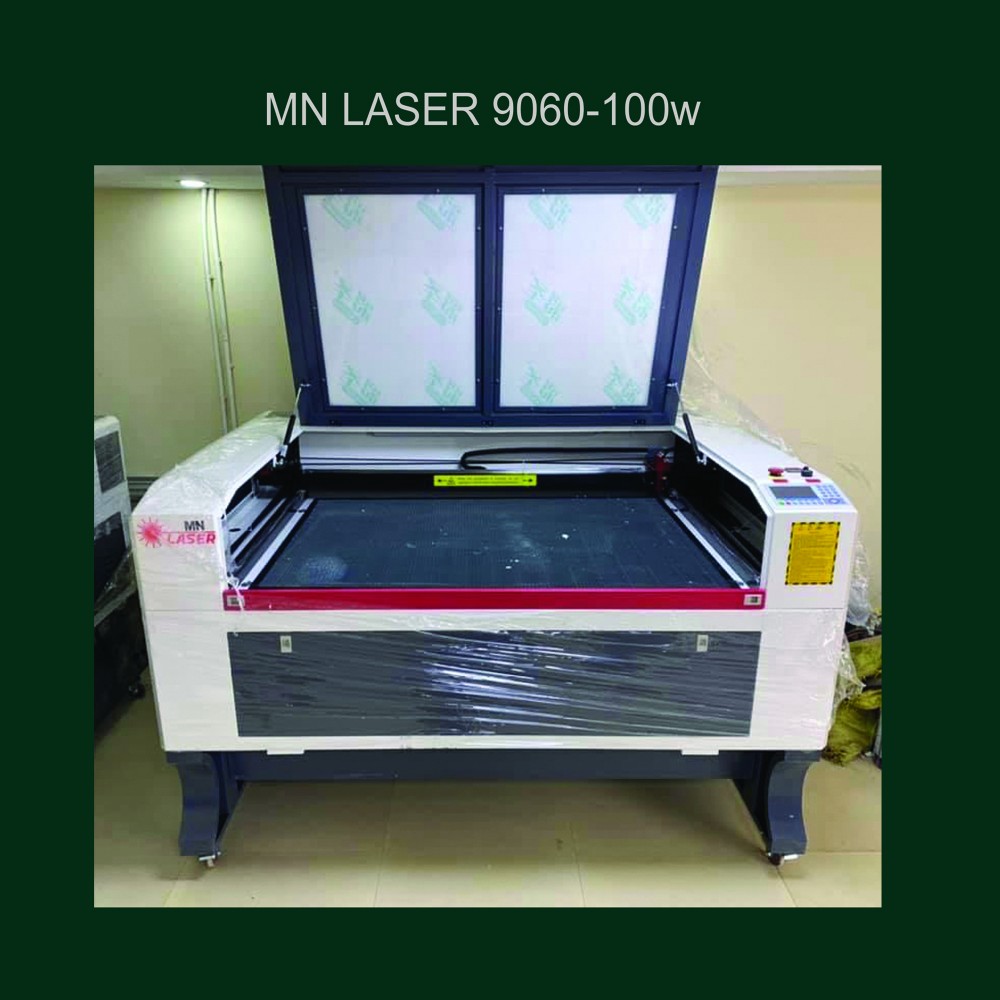

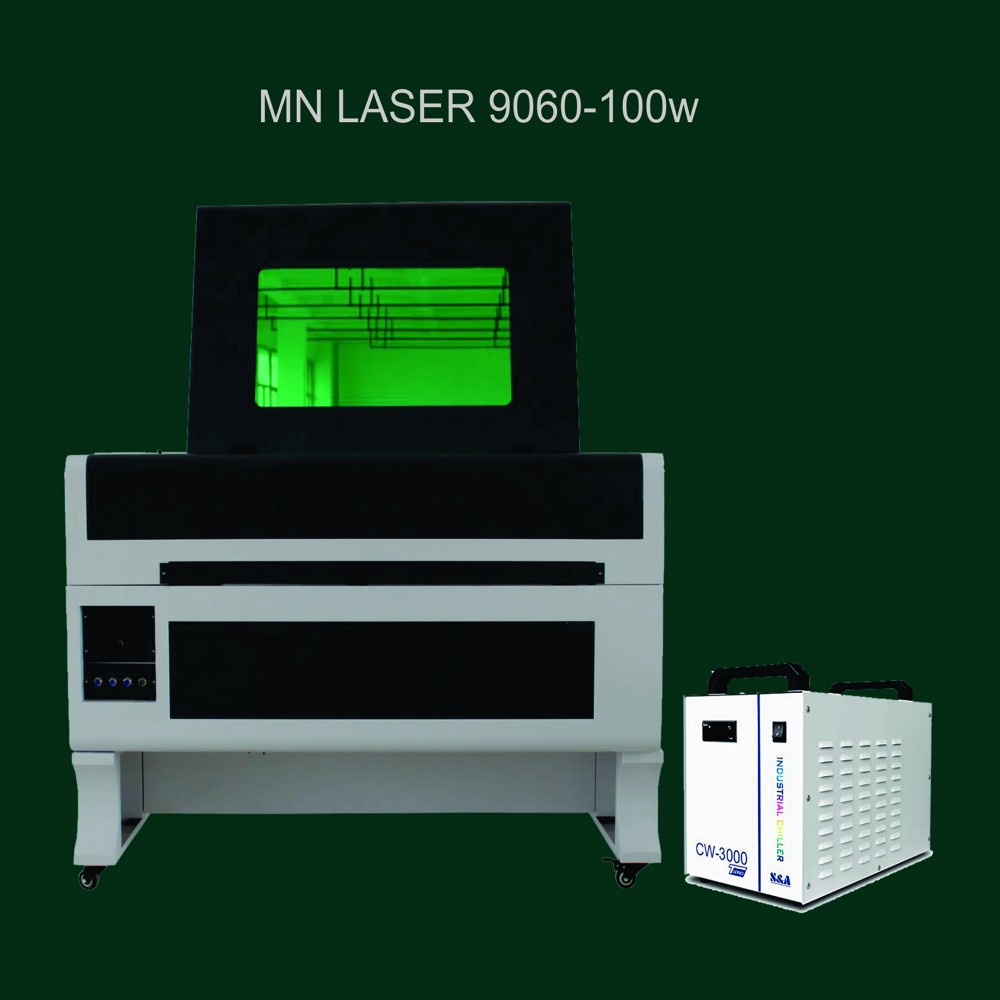

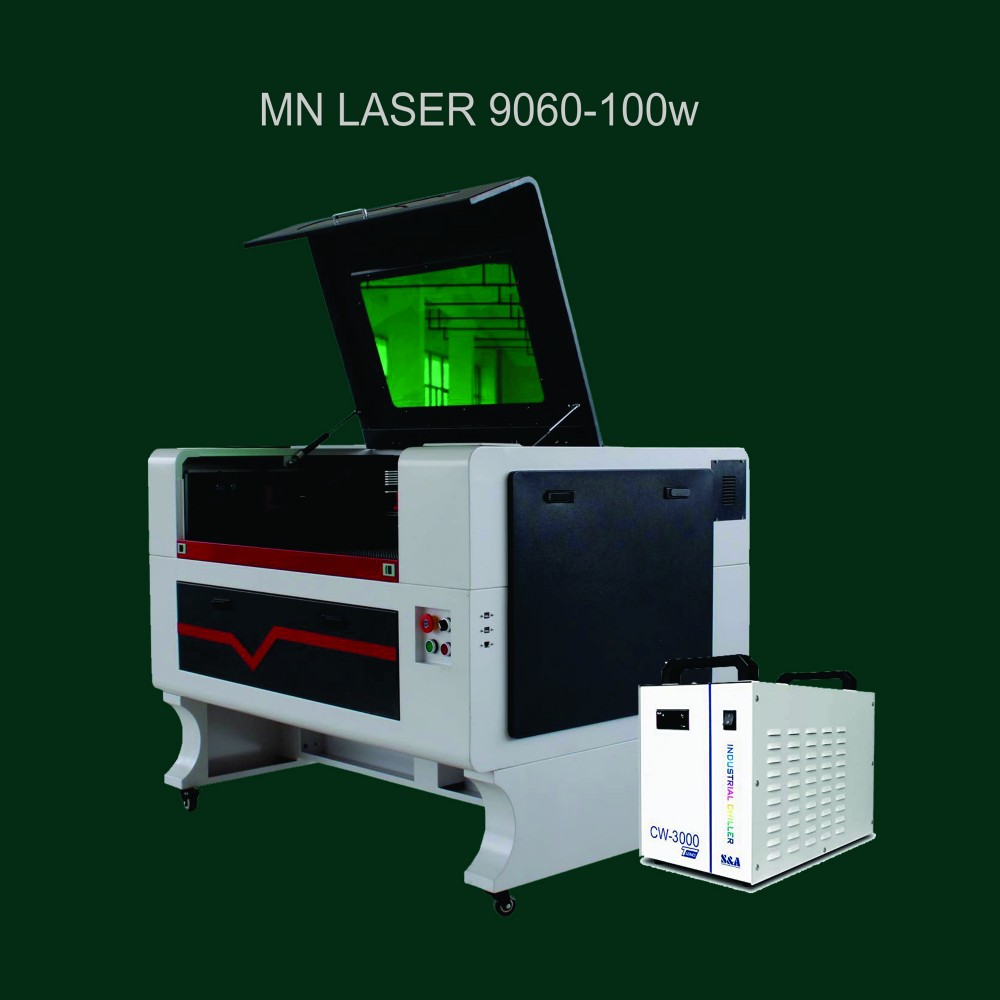

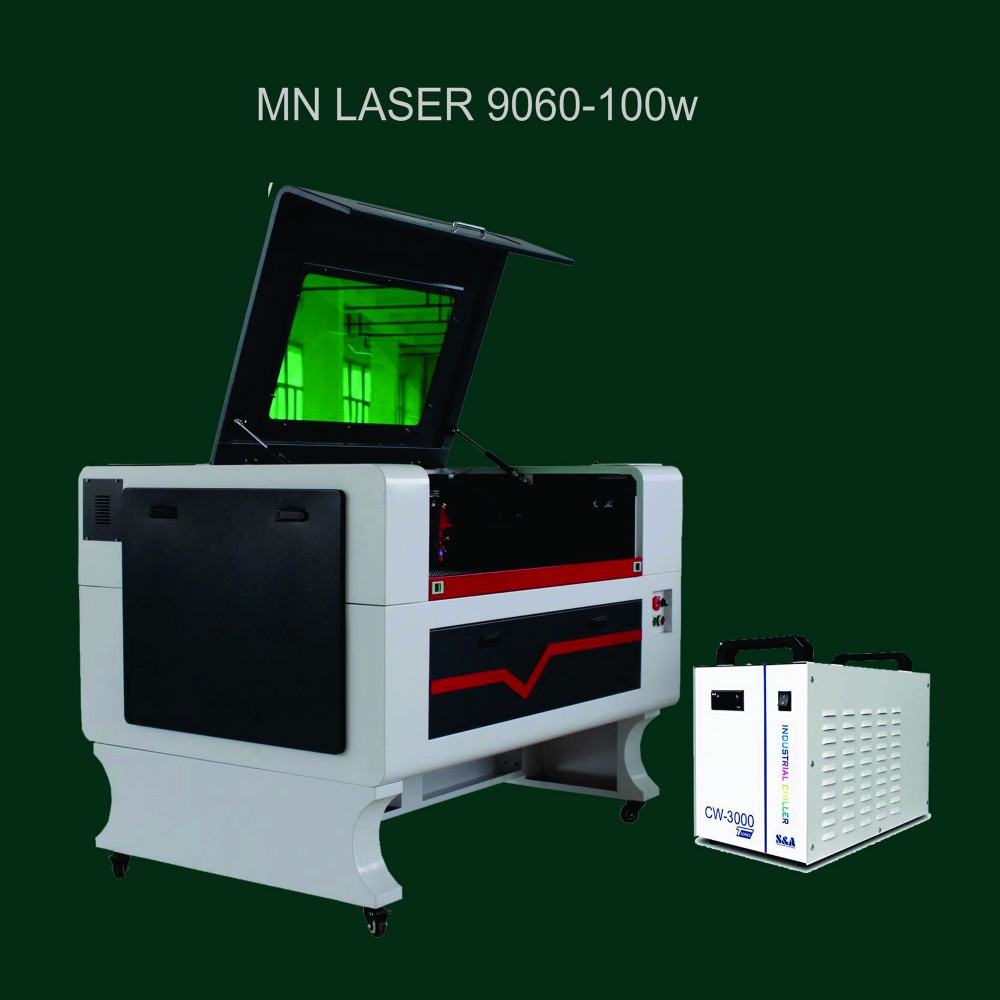

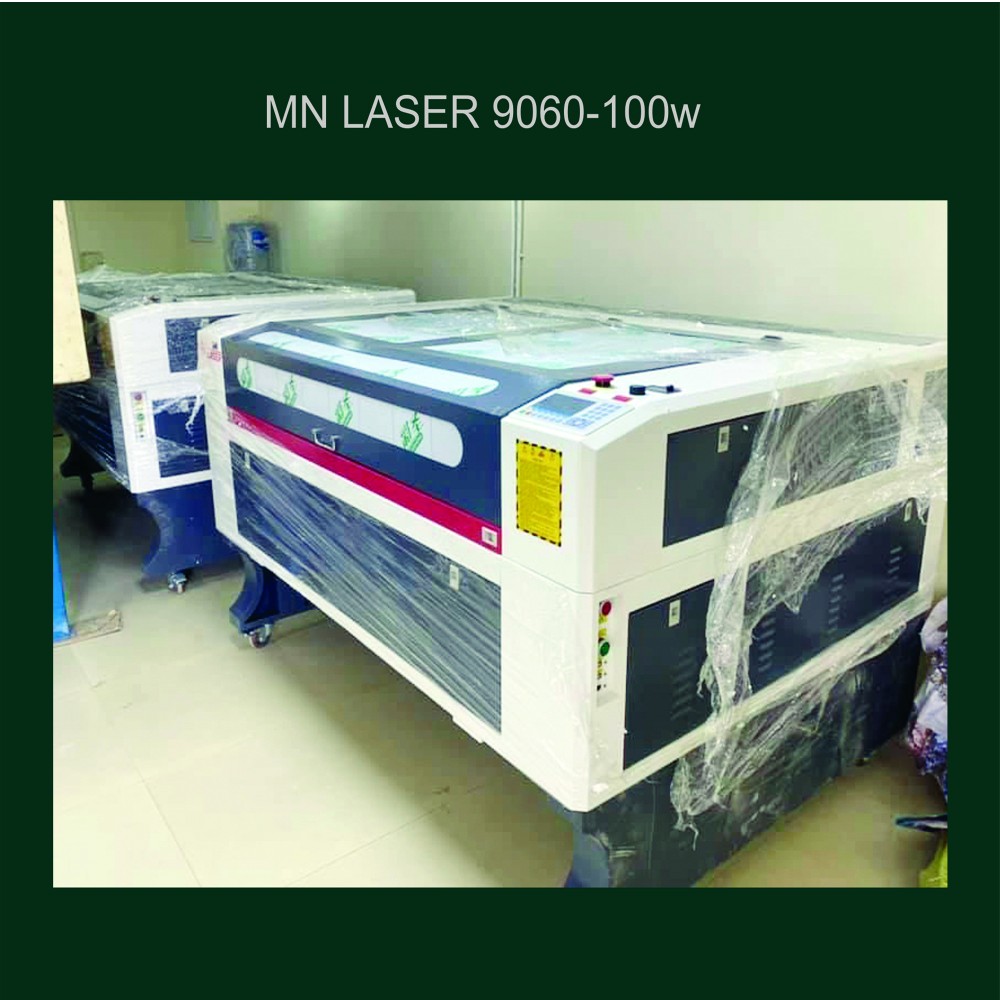

MN-9060 100w CW32000

Star series is the most powerful universal laser cutter, industrial laser engraving machine, almost all materials can be processed, versatile, simple to use.


Machine size: 1400*980*980mm
Machine color: Blue-White, Gray-Yellow
Working area: 900*600mm
Engraving thickness 2mm(depends on material)
Cutting thickness 2cm(depends on material)

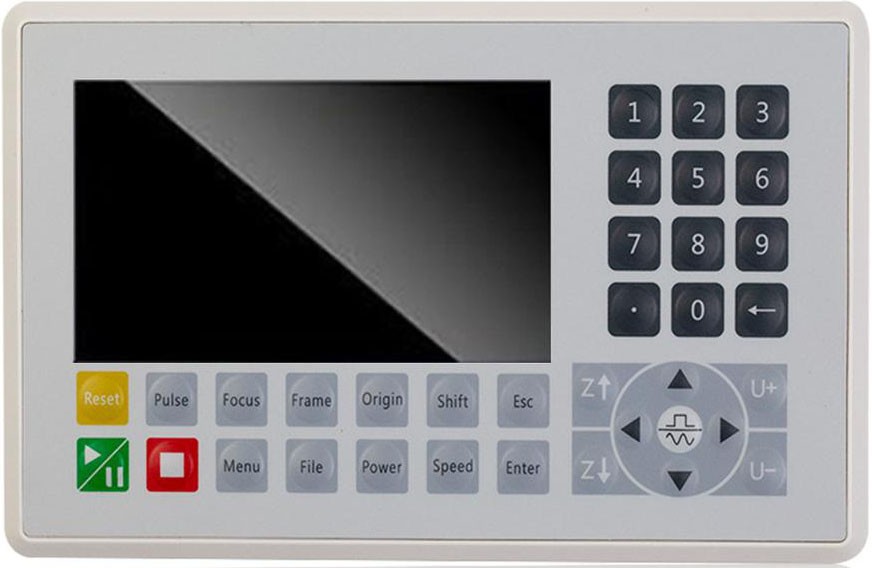

RUIDA V8 CONTROL SYSTEM

Voiern universal laser cutter have powerful processing functions, visual operation and  easy to learn , can meet almost all customer processing requirements.

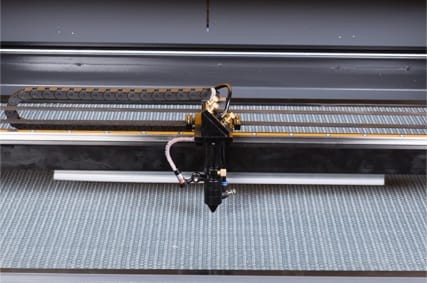

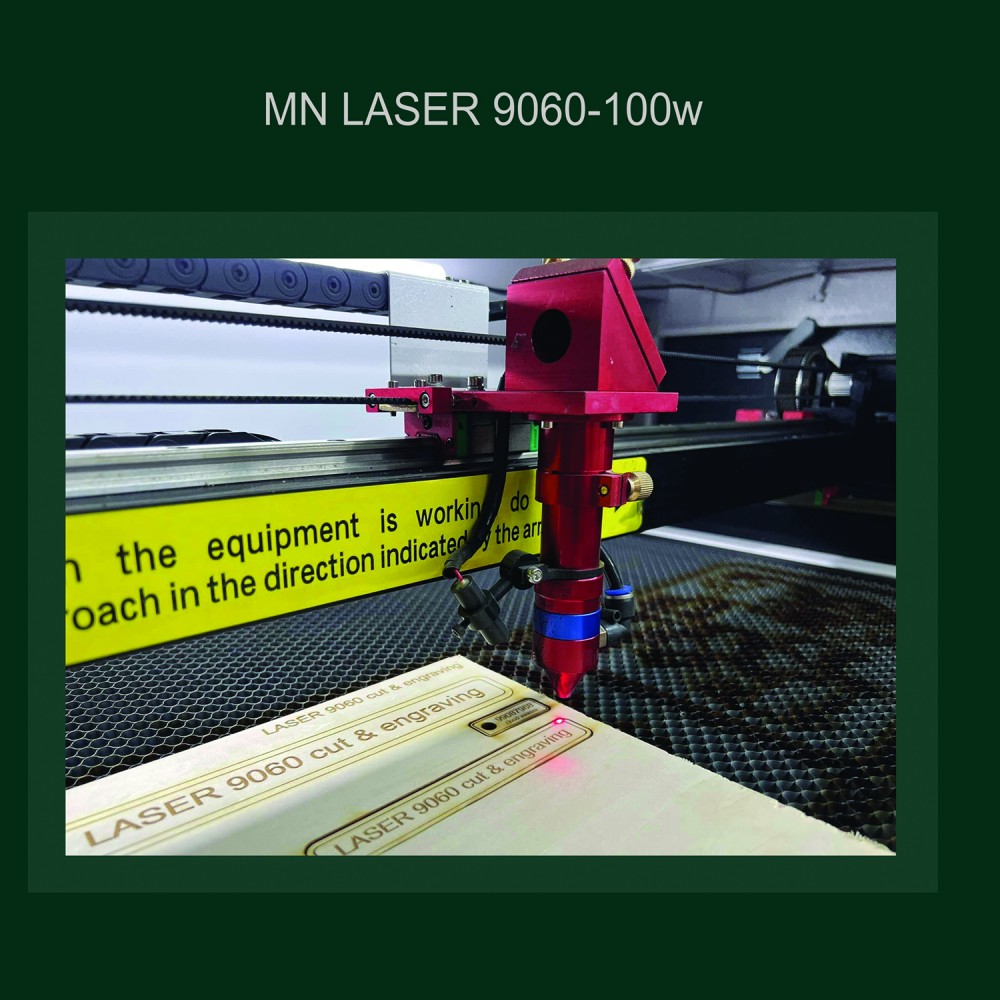

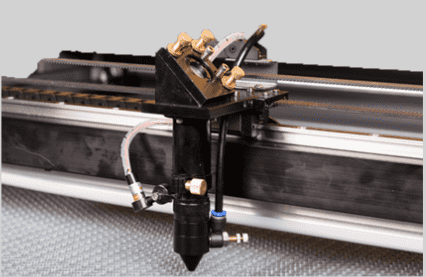

INDUSTRIAL LASER HEAD

The laser head of  industrial laser engraving machine enclosed jet design protects the lens from dust and keeps the lens highly translucent.

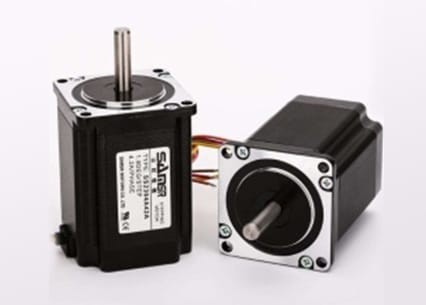

HIGH-SPEED MOTORS

With 57 stepper motors, the engraving speed of universal laser cutter can reach 1000mm/s and the cutting speed can reach 500mm/s.

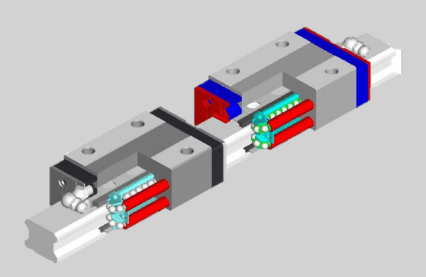

H-Q GUIDE LINEAR RAIL

Industrial laser engraving machine have stainless steel guide rail, moving slider bearing design, smaller friction coefficient, higher precision, faster operation with 57 motor.

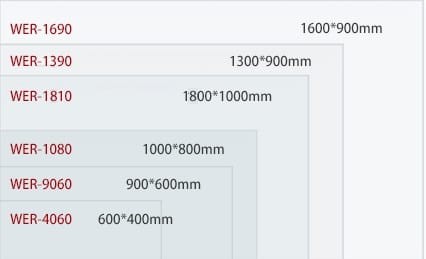

OPTIONAL WORKING AREA

From 400mm*600mm to 900*1600, universal laser cutter meets the requirements of various sizes of materials for the job format.

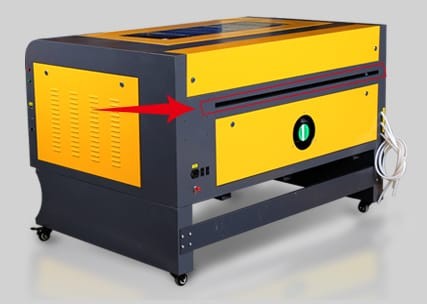

FRONT AND REAR MATERIAL

Voiern universal laser cutter remove the size limit of the processed material, so that the length of the material is increased to an infinite length.

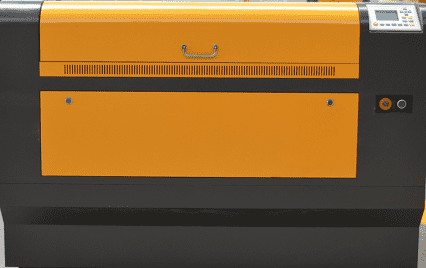

HEIGHTENING MACHINE BOX

Industrial laser engraving machine increase the height of the Z axis to meet the height requirements of materials such as large volume and shape.

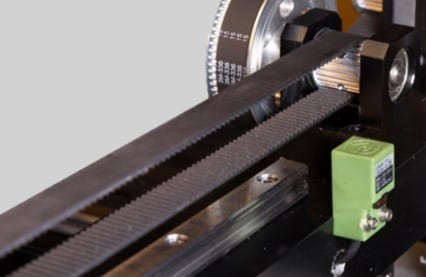

3M CONVEYOR BELT

The famous brand conveyor belt be used in universal laser cutter guarantees a longer service life. the high quality belt  has less stretching and deformation  so that the operation accuracy is not affected.

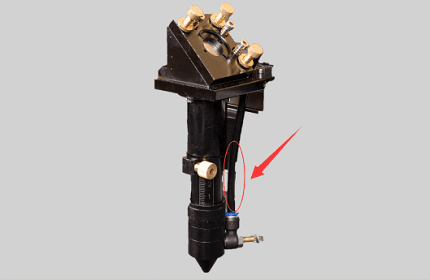

AIR BLOWING

It can protect  the lens from smoke pollution, ensure light transmission, remove excess heat and impurities, and prevent or reduce the possibility of scorch.

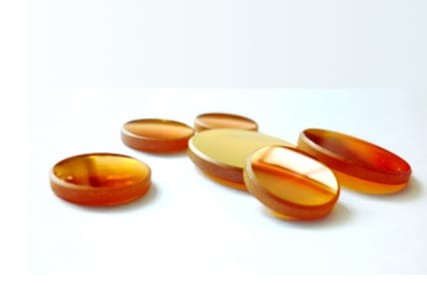

IMPORTED LENSES

Voiern laser universal laser cutter use High-Quality imported lenses ensure more precise beam focusing, finer beam and longer life.

VARIABLE STARTING

The V8 system sets a variable starting point for work, allowing you to work at any point within the working area.

Specification MN-9060 100w CW32000
Machine size 1400*980*980mm
Machine color Blue-White, Gray-Yellow
Working area 900*600mm
Engraving thickness 2mm(depends on material)
Cutting thickness 2cm(depends on material)
Engraving speed 1-1000mm/s
Cutting speed 1-1000mm/s
Laser power 60w/80w/100w
Laser type sealed CO2 laser tube
Cooling mode water cooling protection system
Water protection yes
Positioning way red light positioning
Locating precision <=0.01mm
Working platform Honeycomb
Lift range 0-250mm
Power supply AC220V/110V 50HZ
Net weight 180kg
Package Standard plywood case
System environment WindowXP/win7/8/10
Control software Coreldraw/RuidaV8
Material Engraving Cutting
Acrylic
wood
bamboo
glass
leather
paper
rubber
textile
plastic
metal
stone
ceramic
