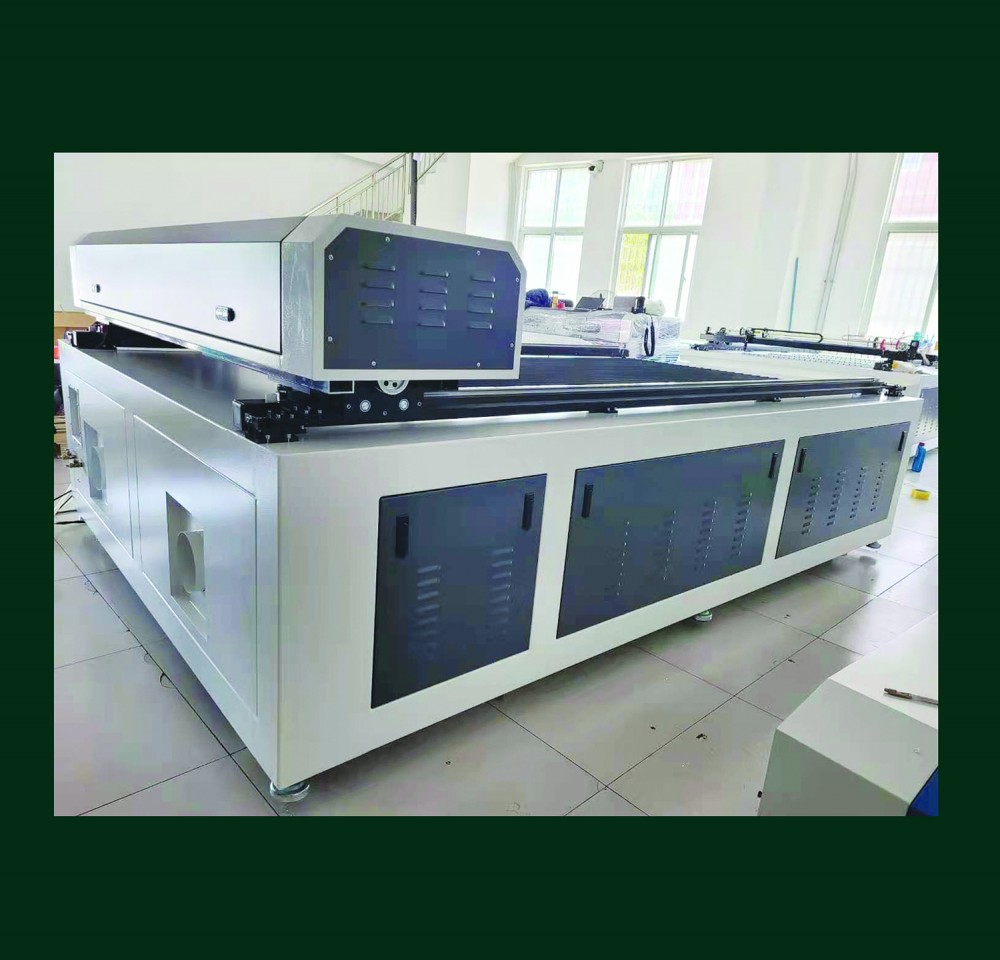

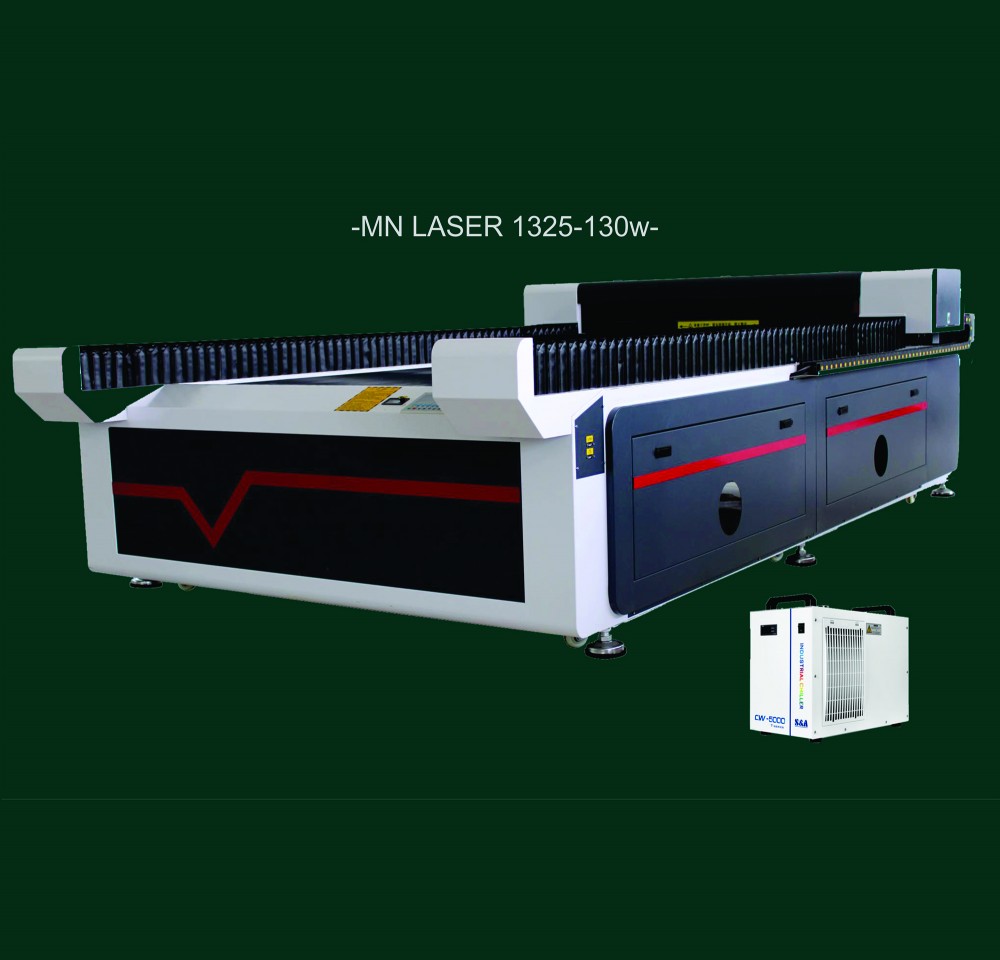

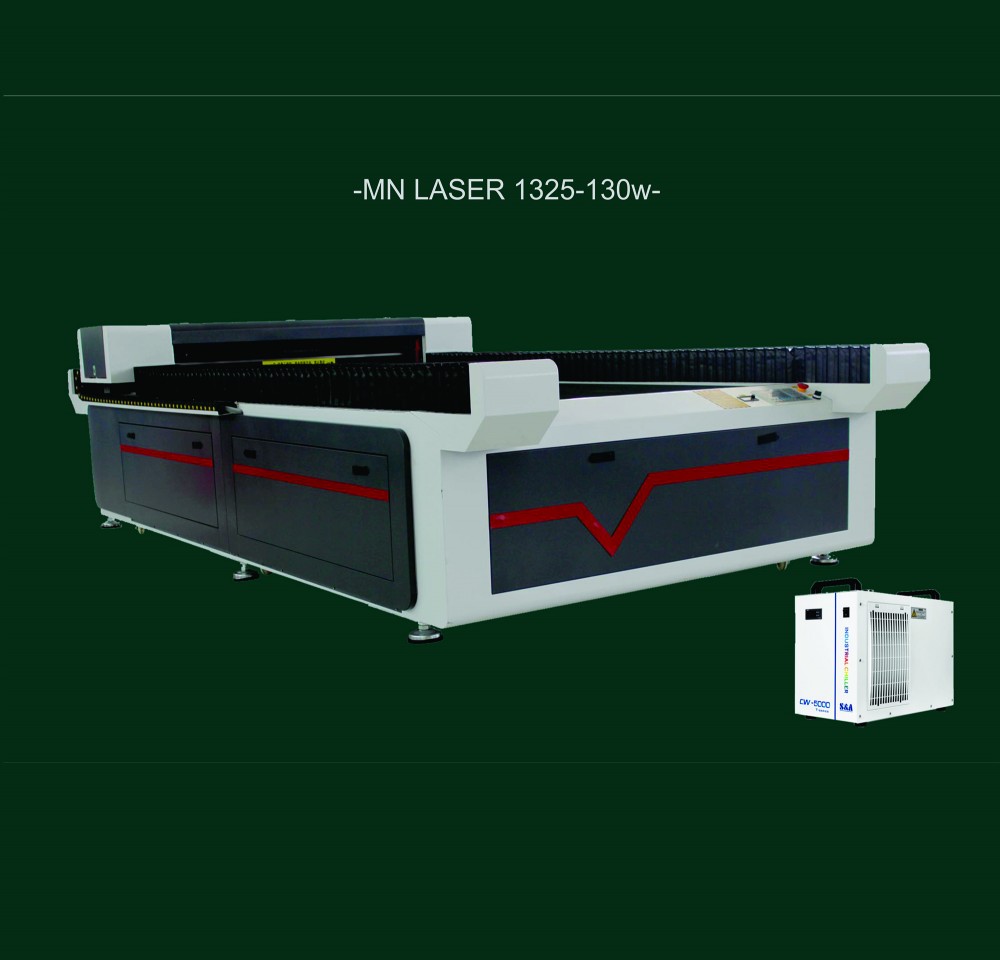

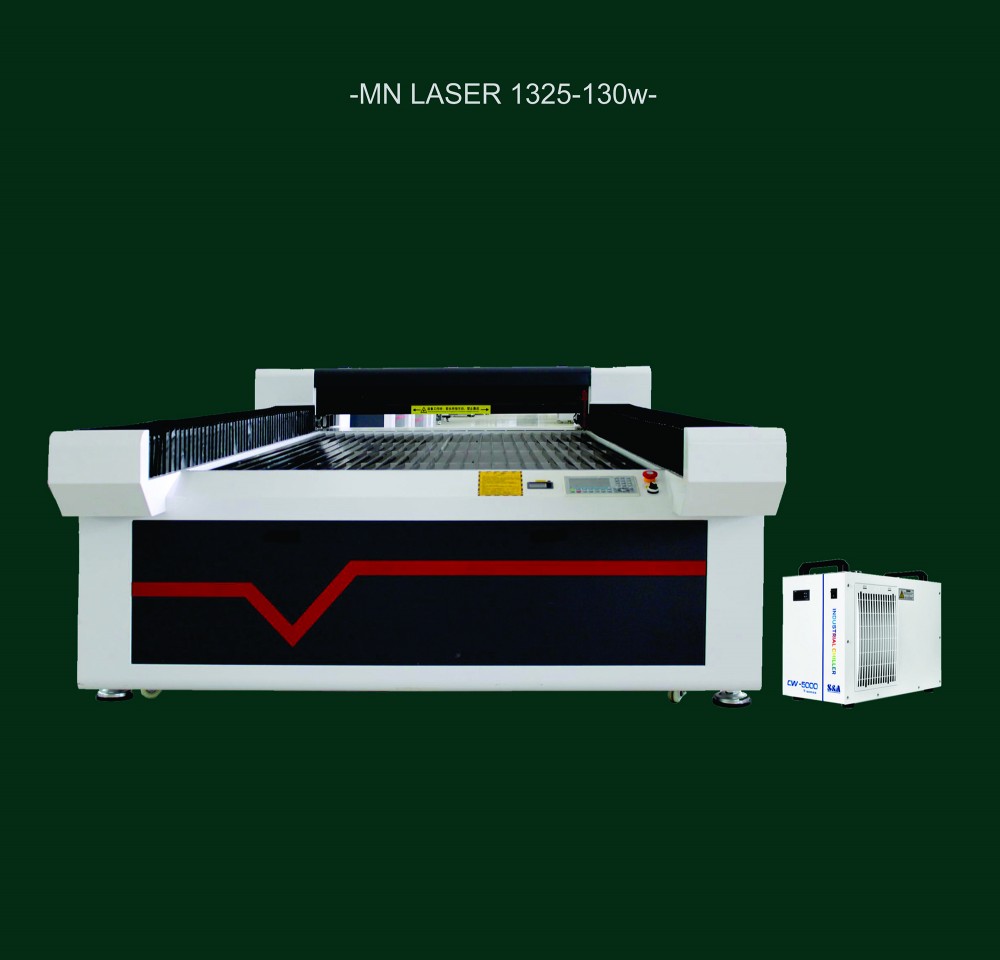

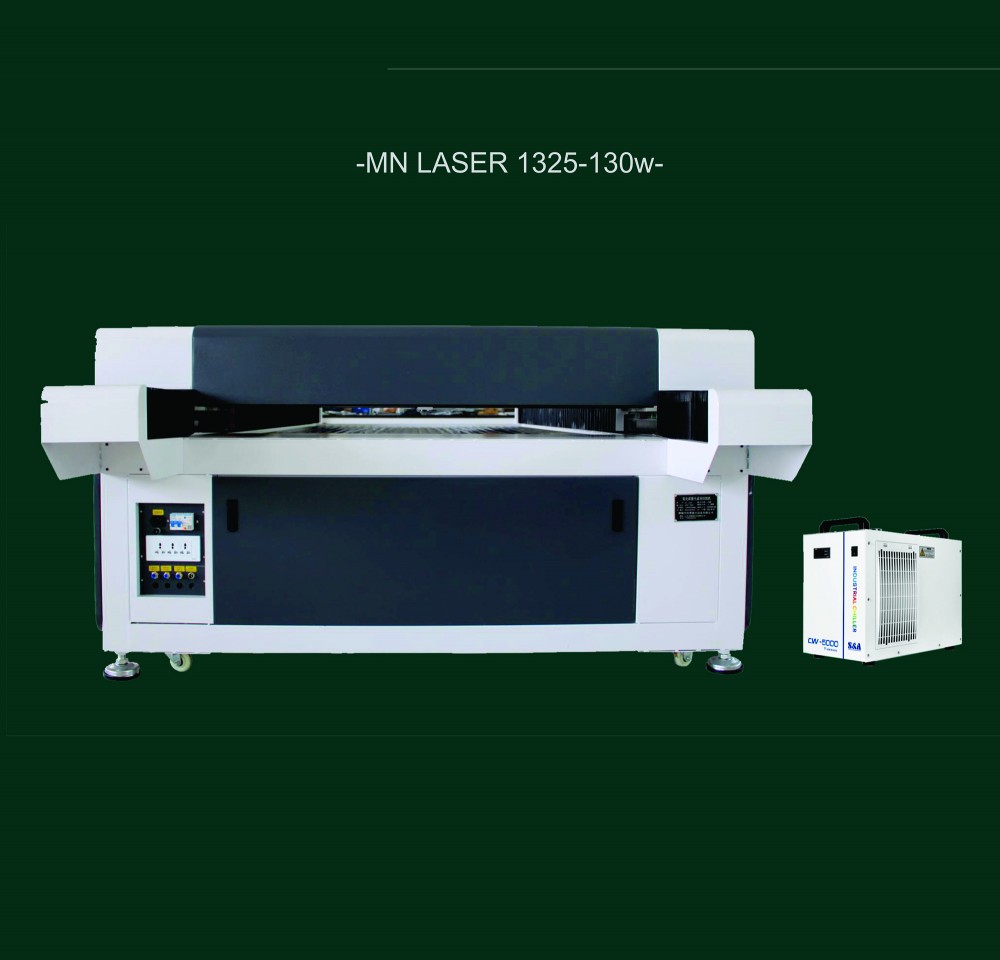

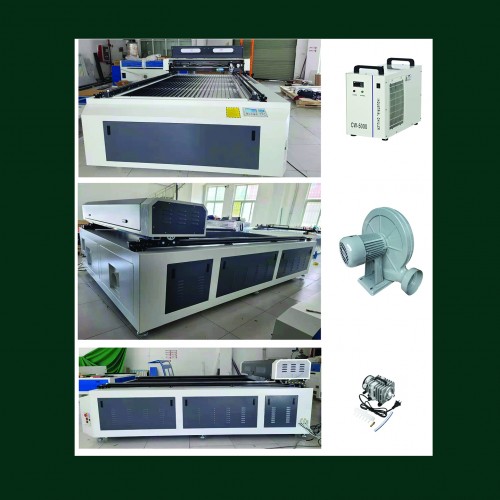

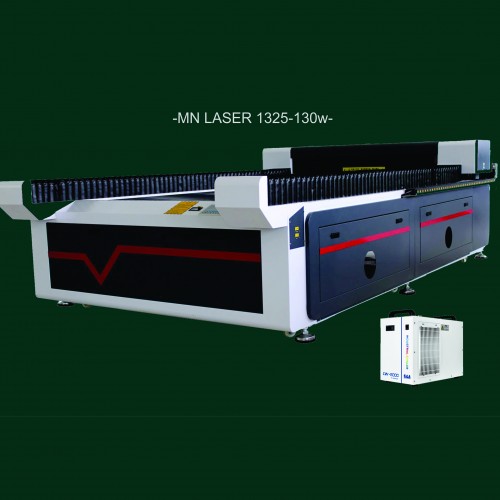

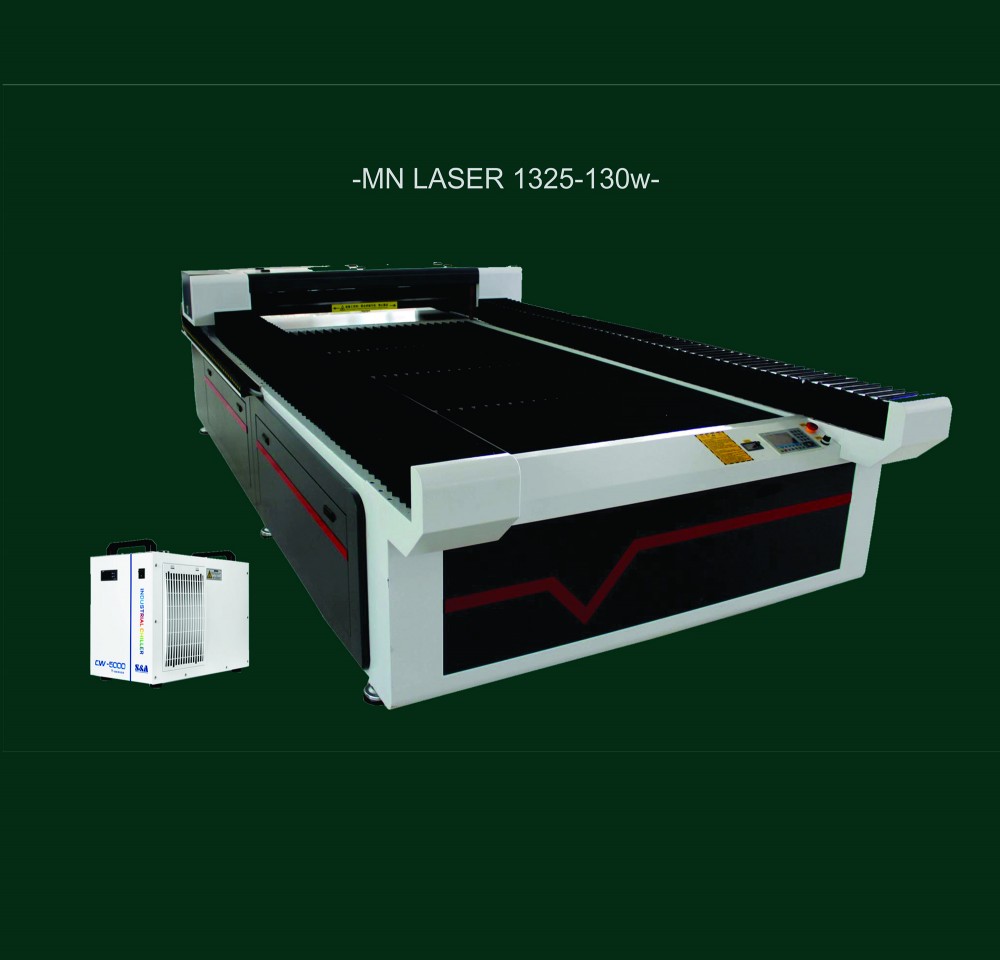

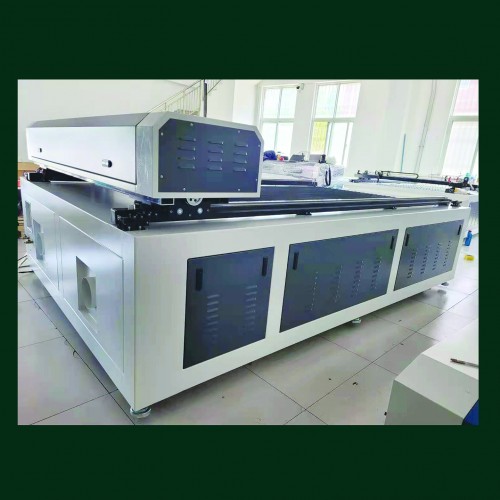

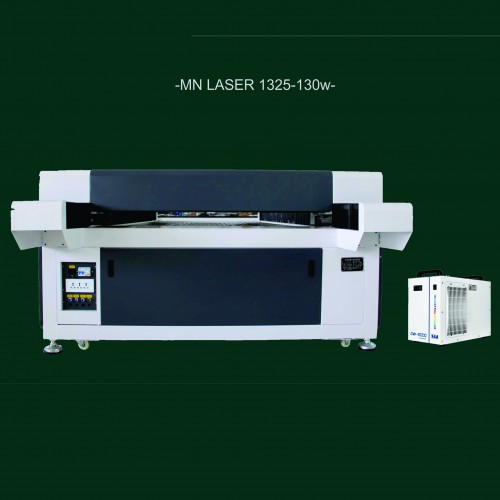

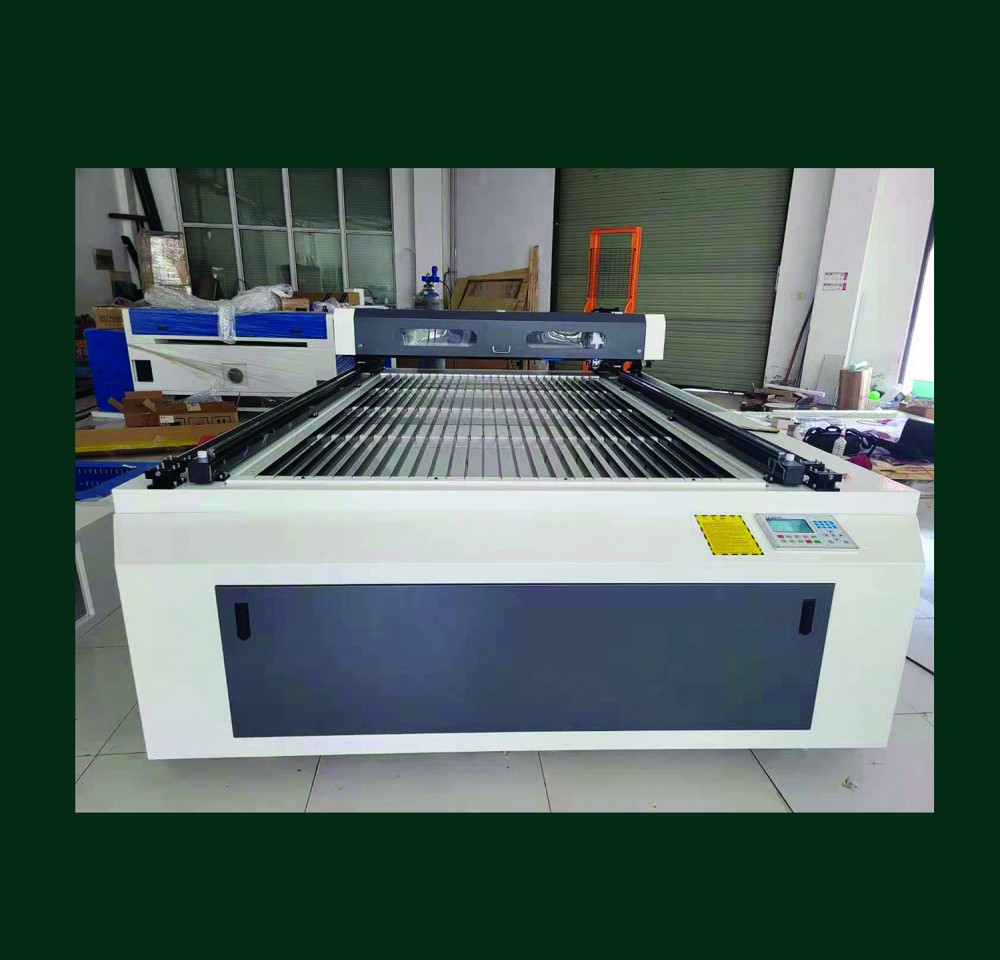

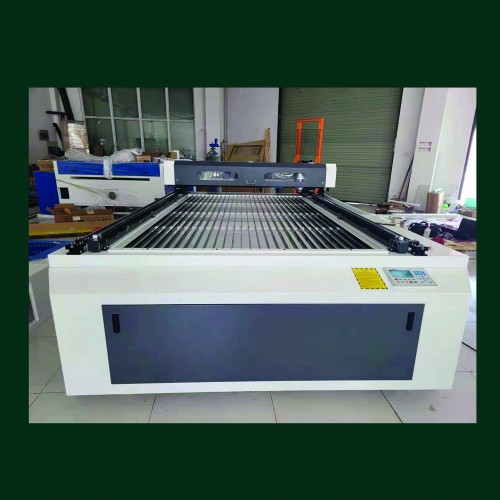

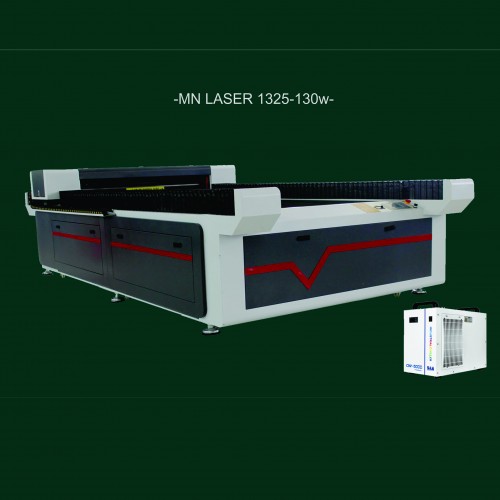

MN-1325 is a large-format budget laser cutter. acrylic laser cutting machine price is affordable, suitable for cutting large size materials, such as acrylic, wood, cloth and so on.
| Machine size: | 3200*2010*1140mm |
|---|---|
| Machine color: | Gray-Yellow |
| Working area: | 1300*2500mm |
| Engraving thickness | 2mm(depends on material) |
| Cutting thickness | 2cm(depends on material) |
Strong data processing capacity, visual operation, easy to learn, can be used offline, almost meet all customer processing requirements.
plastic laser cutting machine ranging from 60W to 150W, more powers provide by famous brand, , giving customers more choices.
Budget laser cutter suitable for advertising, printing, craft gifts, models and other large format requirements of the machine.
Budget laser cutter use taiwan famous brand guide rail to ensure high precision processing
The thickening belt can minimize belt tension and deformation, so that the accuracy of the work is not affected.

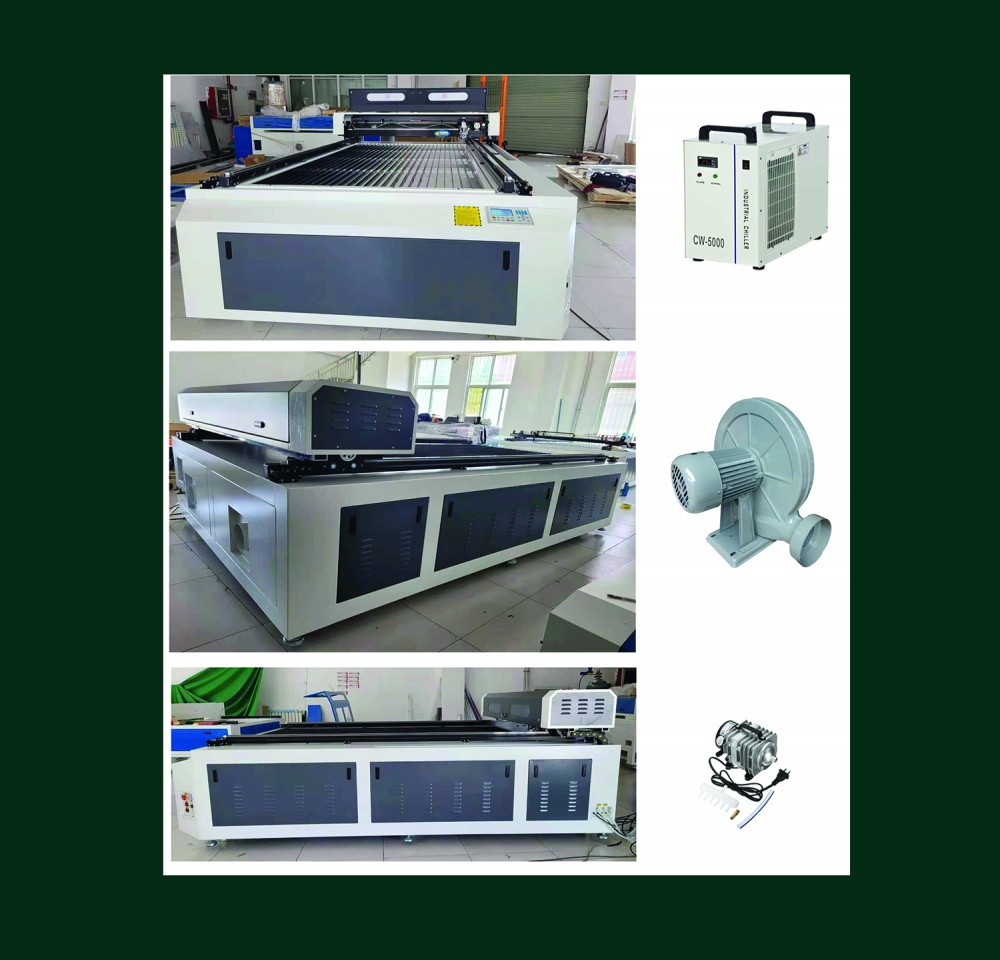

If there is no water to cool the tube, the plastic laser cutting machine automatically recognizes that it stops working and prevents damage to the laser tube caused by no cooling.
Design of budget laser cutter makes it easier to clean the debris generated during processing.
| Specification | MN-1325 (gray) |
|---|---|
| Machine size | 3200*2010*1140mm |
| Machine color | Gray-Yellow |
| Working area | 1300*2500mm |
| Engraving thickness | 2mm(depends on material) |
| Cutting thickness | 2cm(depends on material) |
| Engraving speed | 1-1000mm/s |
| Cutting speed | 1-500mm/s |
| Laser power | 60w/80w/100w/1350w/150w |
| Laser type | sealed CO2 laser tube |
| Cooling mode | water cooling protection system |
| Water protection | yes |
| Positioning way | red light positioning |
| Locating precision | <=0.01mm |
| Working platform | Blade platform |
| Lift range | 0-50mm |
| Power supply | AC220V/110V 50HZ |
| Net weight | 850kg |
| Package | Standard plywood case |
| System environment | WindowXP/win7/8/10 |
| Control software | Coreldraw/RuidaV8 |
| Material | Engraving | Cutting |
|---|---|---|
| Acrylic | √ | √ |
| wood | √ | √ |
| bamboo | √ | √ |
| glass | √ | |
| leather | √ | √ |
| paper | √ | √ |
| rubber | √ | √ |
| textile | √ | √ |
| plastic | √ | √ |
| metal | ||
| stone | √ | |
| ceramic | √ |
