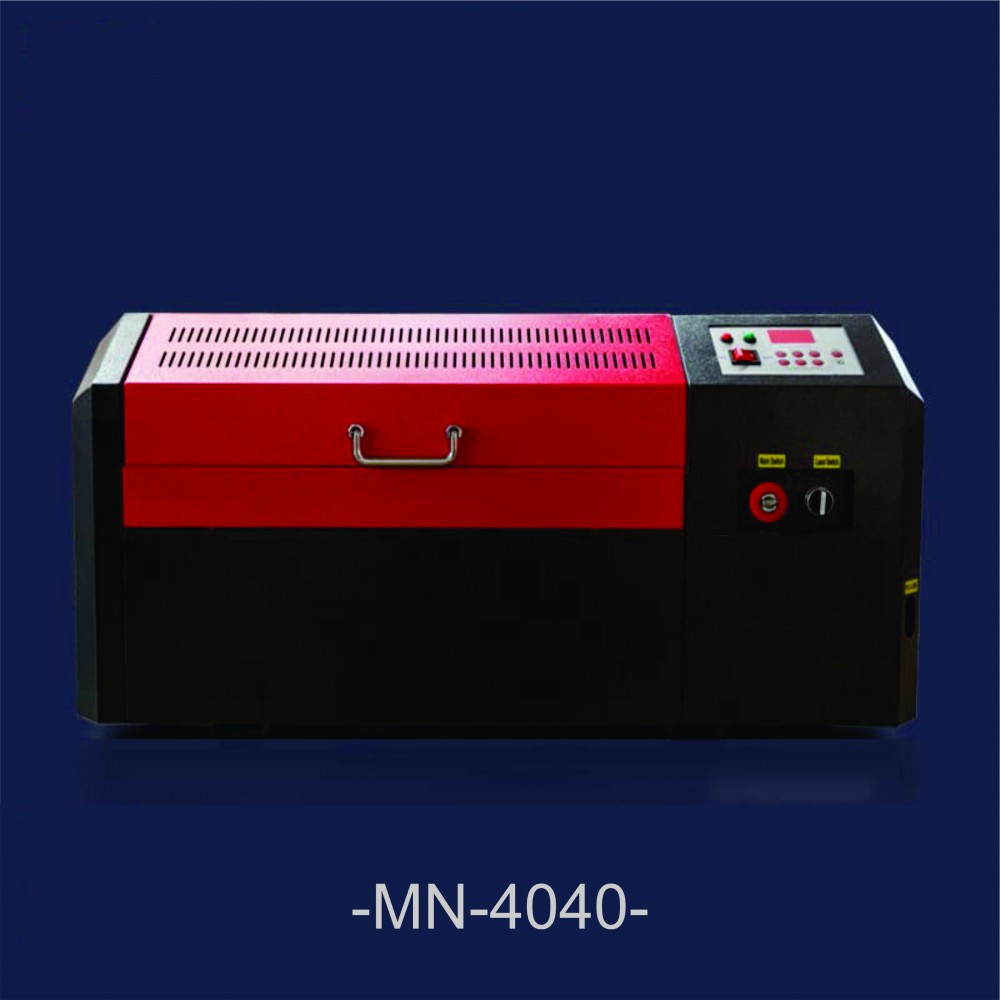

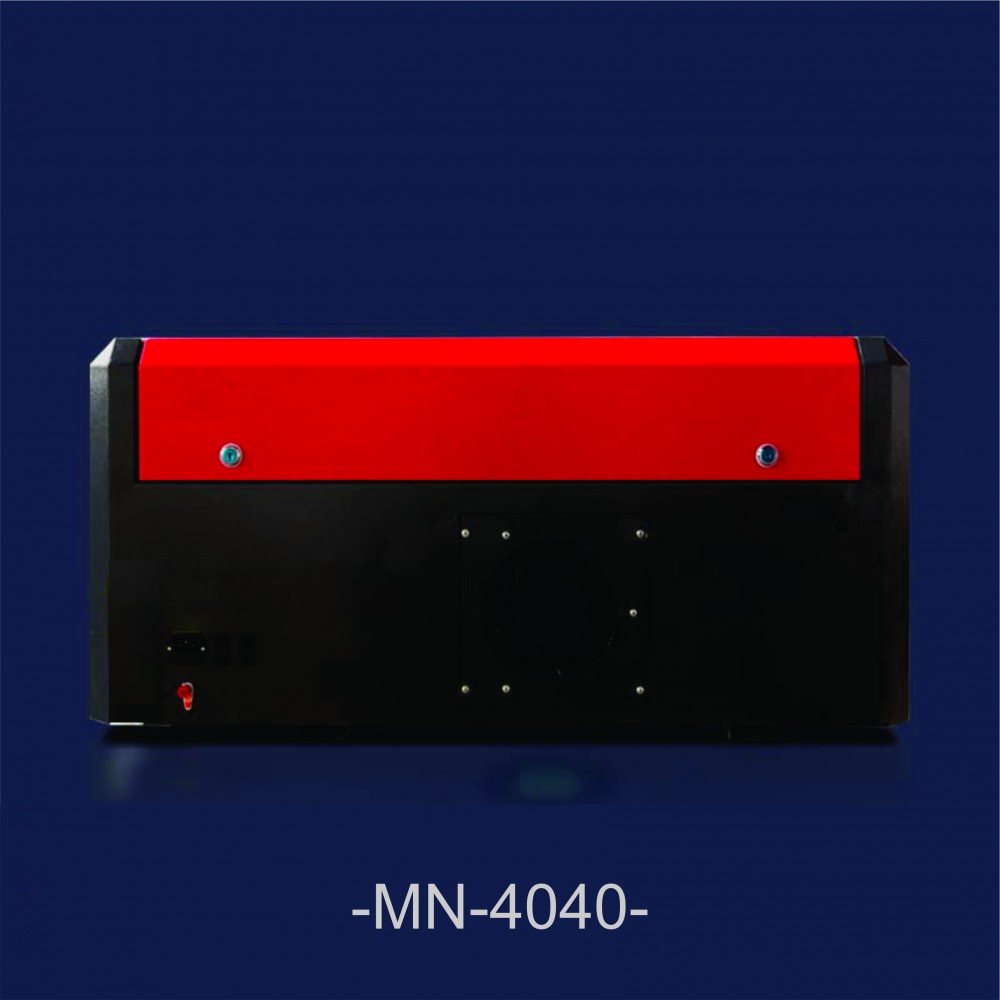

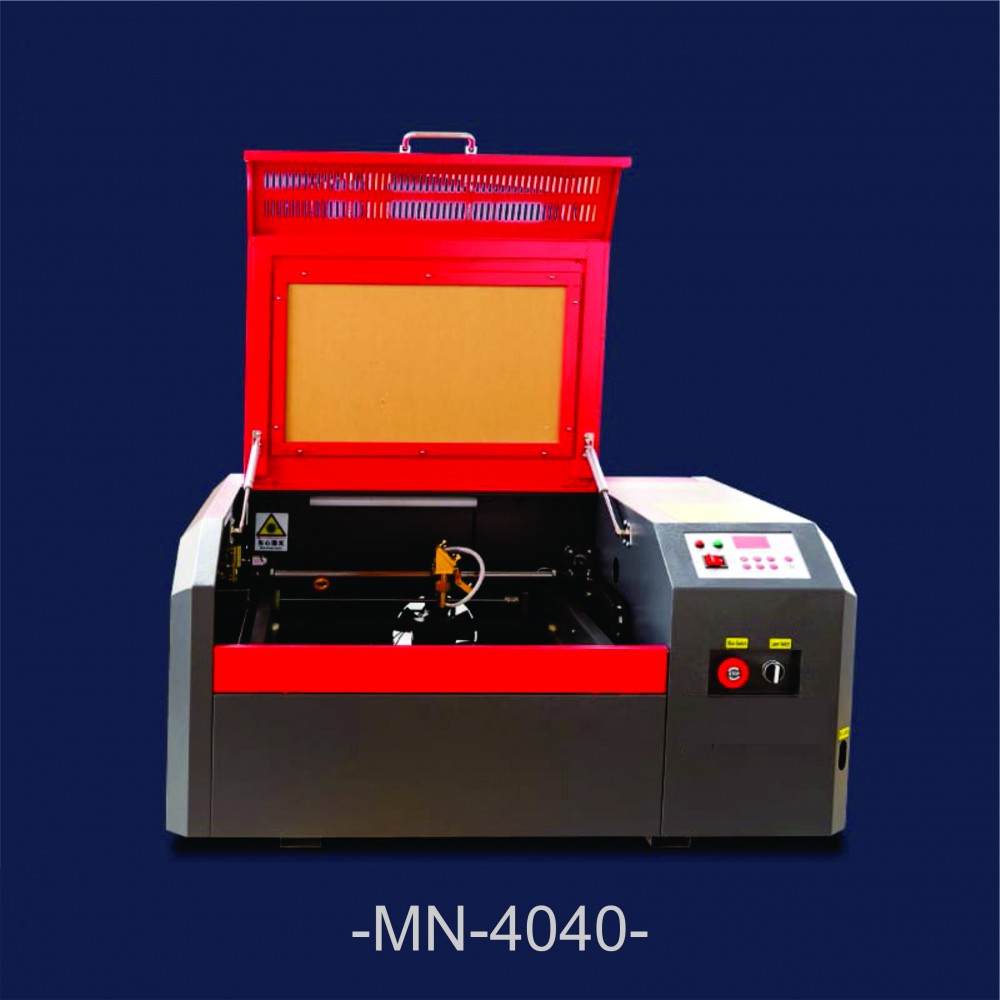

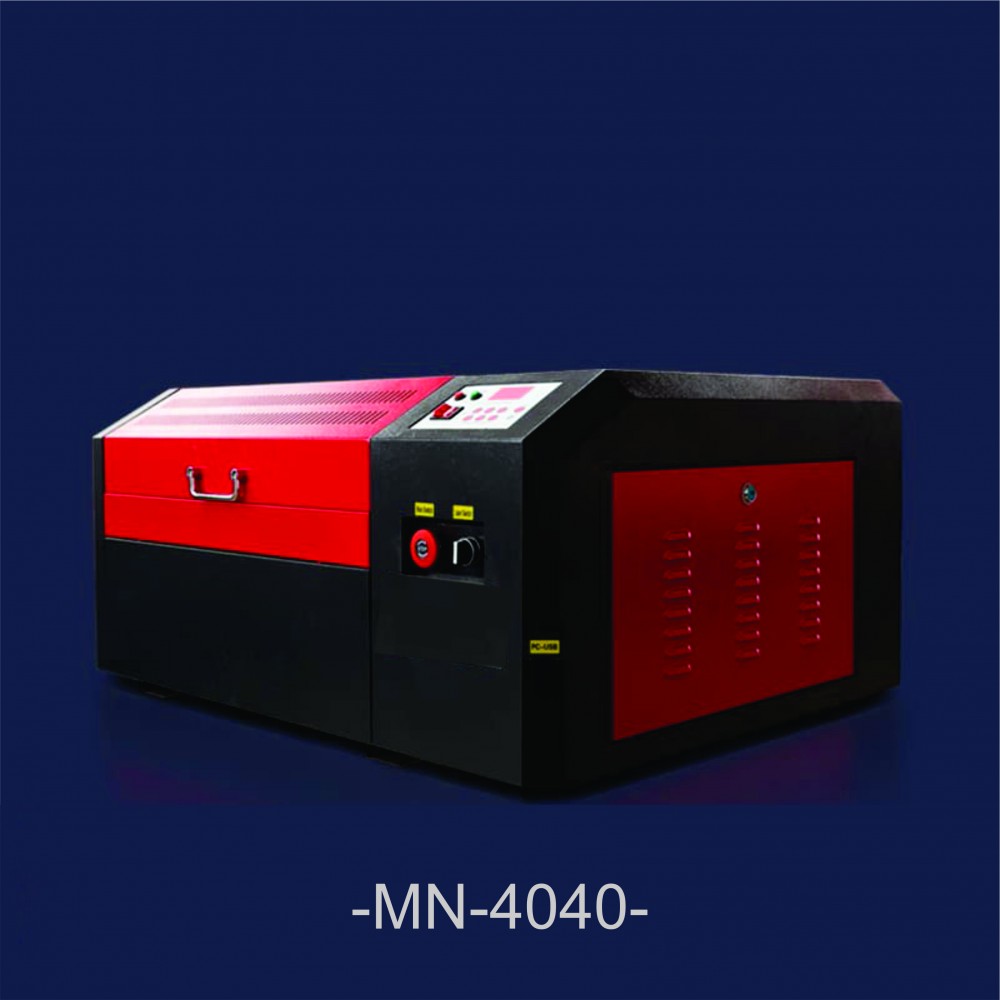

MN-4040 (portable Laser engraving machine)

Portable Laser engraving machine have characteristics of small occupation space, affordable price , powerful functions and high quality components.


Machine size: 920*730*420mm
Machine color: Dark grey-white,dark grey-red
Working area: 400*400mm
Engraving thickness 2mm(depends on material)
Cutting thickness 2cm(depends on material)

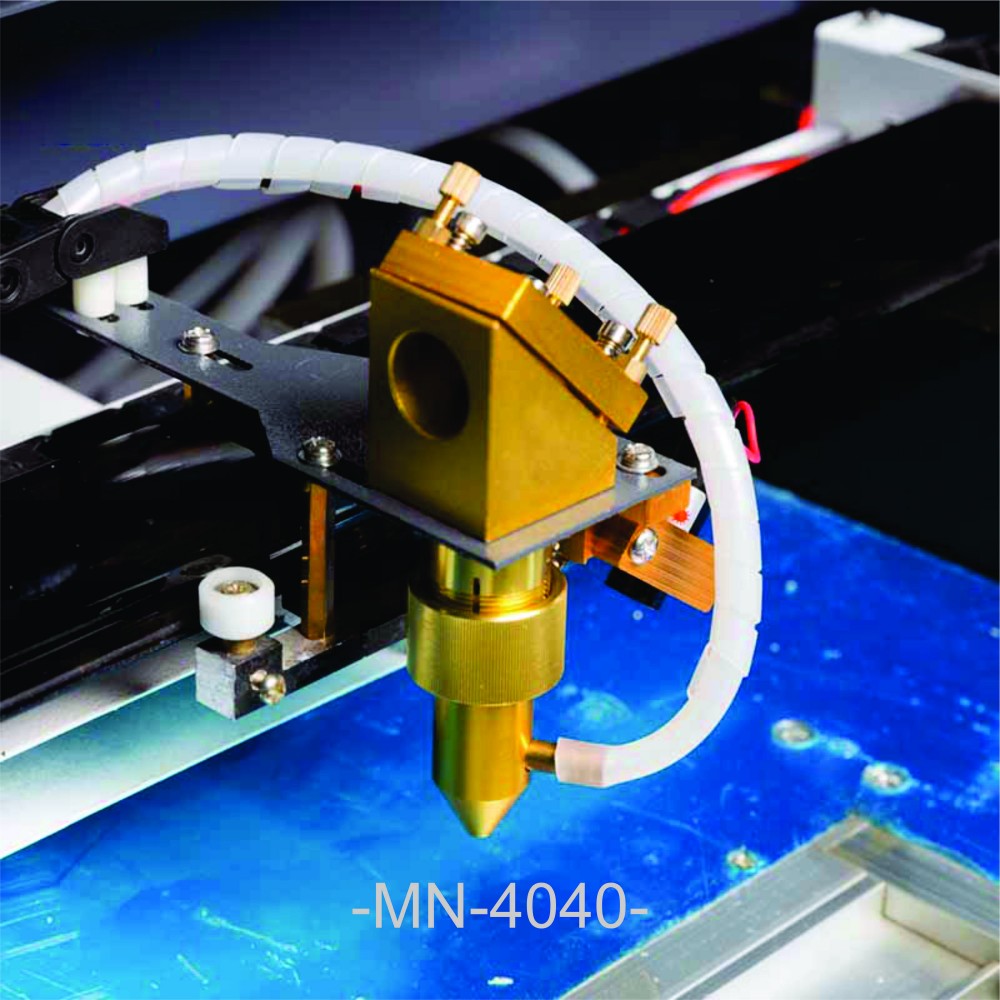

Industrial grade laser head

Laser head of small laser engraving machine can be extended up to 6cm. Being very convenient for adjusting the focal length and high precision.

Optical frame

The optical path frame is made of thick aluminum plated plate, anti-oxidation, standardized components. It is very easy to adjust and the stability is stronger.

Imported linear guide

Reinforced bearing slide design of small laser engraving machine, stainless steel guide rail is rustproof and oxidation resistance. Lower drag coefficient, higher precision and smooth operation.

Tank track guide chain

Tank track guide chain of voiern small laser engraving machine protects the air pipe effectively ,this design protects the wiring harness from wear and tear.

High-speed stepping motor

Stable high-speed stepping motor of small laser engraving machine. Speed and stability could also be comparable with the mainframe.

Red light positioning

It can accurately posit the working position of the laser beam, small laser engraving machine working is high precision.

Jet tube assist

It can protect the lens from smoke pollution and ensure light transmittance. Removing excess heat and impurities. So carbonization and charring will be avoided.

Specification MN-4040 (portable Laser engraving machine)
Machine size 920*730*420mm
Machine color Dark grey-white,dark grey-red
Working area 400*400mm
Engraving thickness 2mm(depends on material)
Cutting thickness 2cm(depends on material)
Engraving speed 1-400mm/s
Cutting speed 1-400mm/s
Laser power 40W/50W
Laser type sealed CO2 laser tube
Cooling mode water cooling protection system
Water protection yes
Positioning way red light positioning
Locating precision <=0.01mm

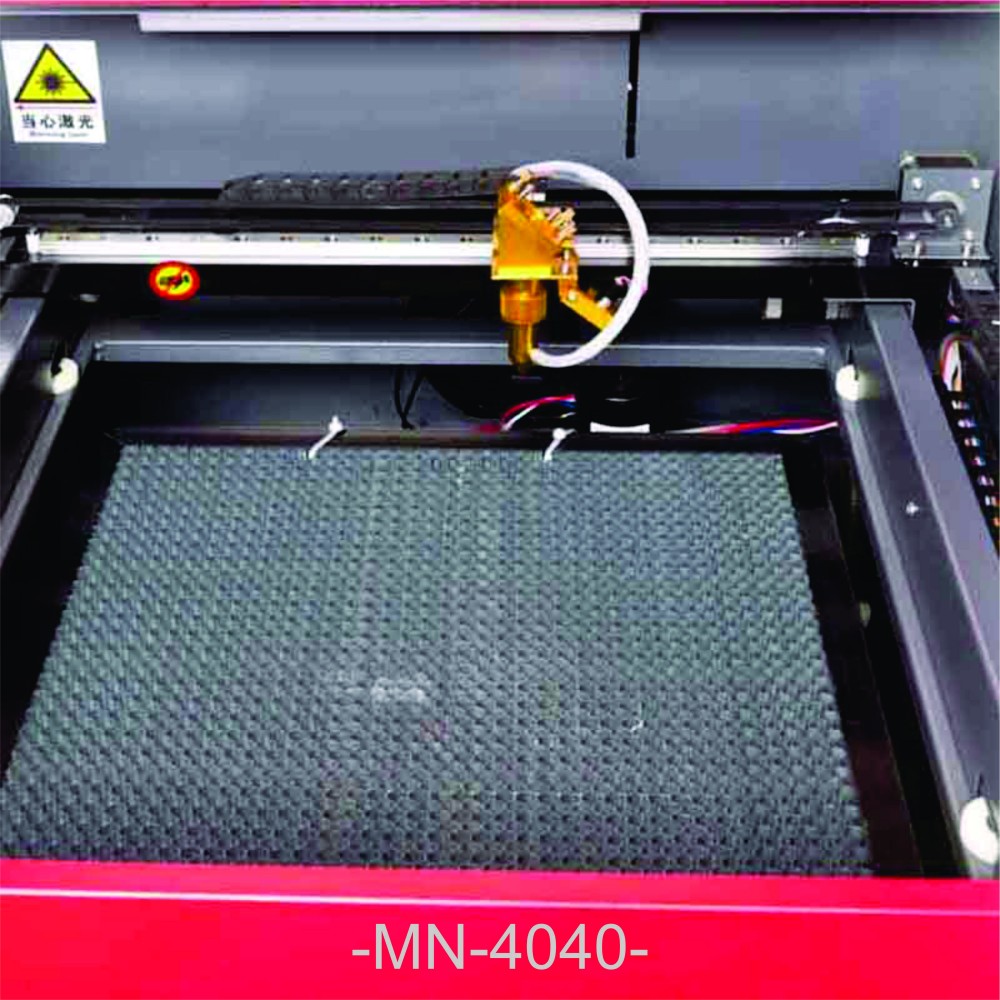

Working platform Honeycomb
Lift range Electronic lift0-150mm
Power supply AC220V/110V 50HZ
Net weight 50kg
Package Standard plywood case
System environment WindowXP/win7/8/10
Control software Coreldraw/RuidaV8
Material Engraving Cutting
Acrylic
wood
bamboo
glass
leather
paper
rubber
textile
plastic
metal
stone
ceramic
4040 install Download
